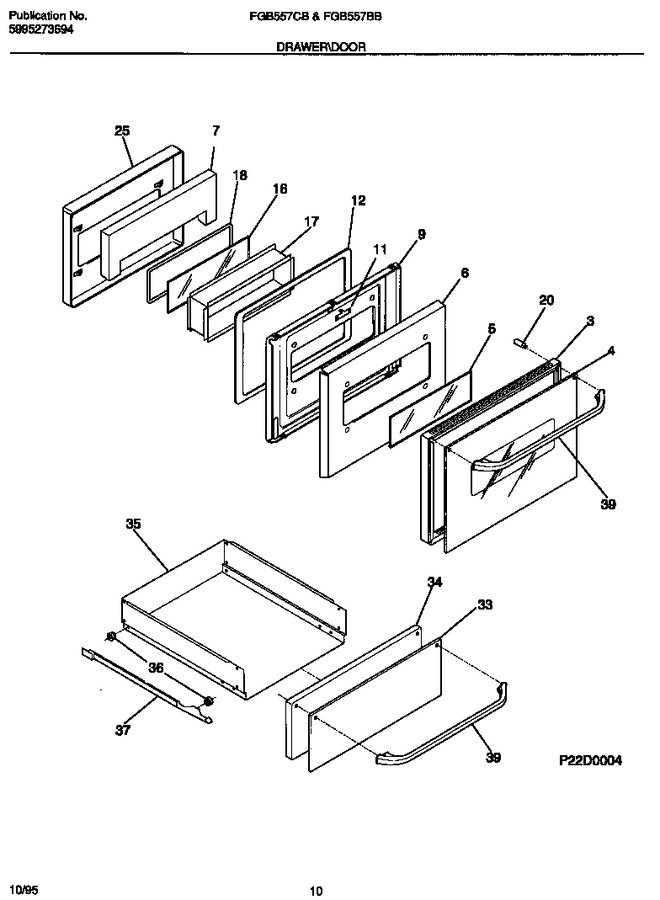

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303212560		Trim-oven Door		Appelez-nous	-
4	5303302707		Glass-oven Door, White, Outer		Appelez-nous	-
5	5303016336		Glass-oven Door, Heat Barrier		Appelez-nous	-
6	5303210005		Shield - Air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
9	5303301256		Liner-oven Door		Appelez-nous	-
11	5301167830		Strike Plate		Appelez-nous	-
12	3205189		Seal-oven Door		Appelez-nous	-
16	5303210001		Glass-oven Door, Heat Barrier		Appelez-nous	-
17	5303210006		Spacer-glass		Appelez-nous	-
18	3016263		Seal-rope				$ 66.15
20	5303300173		Spacer-handle,white		Appelez-nous	-
25	5303301253		Liner-door Baffle		Appelez-nous	-
33	5303308464		Glass-drawer, Front		Appelez-nous	-
34	5303210010		Panel-inner Drw		Appelez-nous	-
35	3051058		Drawer-utility		Appelez-nous	-
36	5303935079		Roller		Appelez-nous	-
39	5303310510		Screw-handle Mtg (not Illustrated)				$ 14.18
39	5303302705		Handle-door, White, Oven		Appelez-nous	-
*57175	3202113		Button, Plug		Appelez-nous	-
*57176	5303210008		Collar-glass Mtg		Appelez-nous	-
*57177	5303271093		Reflector, Aluminum Foil		Appelez-nous	-
*57178	318122101		Bracket-glass		Appelez-nous	-
*57179	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
*57180	5303316982		Tape, Seal, (2)		Appelez-nous	-
*57181	08016432		Screw, Truss Head, 8-18 X 3/8, (4)		Appelez-nous	-
*57182	5303308456		Screw, 8-18 X 17/32, Door Frame				$ 10.06
37A	3203723		Rail,drawer ,lh		Appelez-nous	-
37B	3203722		Rail-drawer Rh (not Illustrated)		Appelez-nous	-
37C	5304414648		Screw-rail Mtg (not Illustrated)   (Replaces: 5303308458)				$ 14.18

    View Diagram in Separate Window       Print Part List
