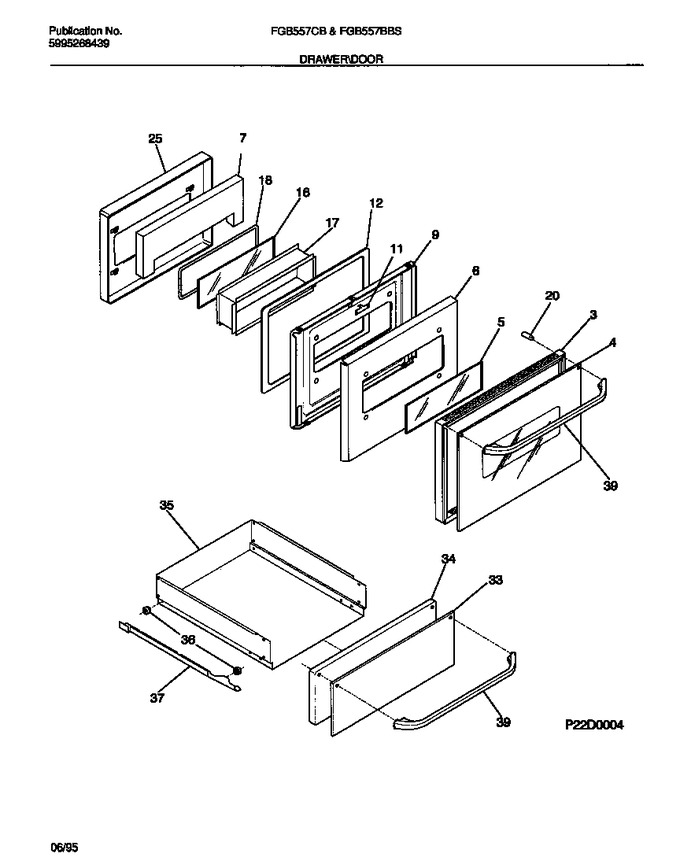

05 - Drawer/door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303212560		Trim-oven Door		Appelez-nous	-
4	5303302707		Glass-oven Door, White, Outer		Appelez-nous	-
5	5303016336		Glass-oven Door, Heat Barrier		Appelez-nous	-
6	5303210005		Shield - Air Wash		Appelez-nous	-
7	5303308455		Insulation-door		Appelez-nous	-
9	5303301253		Shield-wool		Appelez-nous	-
11	5301167830		Strike Plate		Appelez-nous	-
12	3205189		Seal-oven Door		Appelez-nous	-
16	5303210001		Glass-oven Door, Heat Barrier		Appelez-nous	-
17	5303210006		Spacer-glass		Appelez-nous	-
18	3016263		Seal-rope				$ 66.15
20	5303210003		Spacer-door, (2)		Appelez-nous	-
25	5303301256		Liner-oven Door		Appelez-nous	-
33	5303308464		Glass-drawer, Front		Appelez-nous	-
34	5303210010		Panel-inner Drw		Appelez-nous	-
35	3051058		Drawer-utility		Appelez-nous	-
36	5303935079		Roller		Appelez-nous	-
39	5303310394		Handle-door, Oven		Appelez-nous	-
*81247	5303299481		Screw-handle (2)		Appelez-nous	-
*81248	3202113		Button, Plug		Appelez-nous	-
*81249	5301164563		Screw		Appelez-nous	-
*81250	5303051043		Screw-handle		Appelez-nous	-
*81251	5303210008		Retainer, Glass		Appelez-nous	-
*81252	5303210009		Retainer-glass		Appelez-nous	-
*81254	5303305021		Spacer-handle		Appelez-nous	-
37A	3203723		Rail,drawer ,lh		Appelez-nous	-
37B	3203722		Rail-drawer Rh (not Illustrated)		Appelez-nous	-
