01 - Freezer Compartment

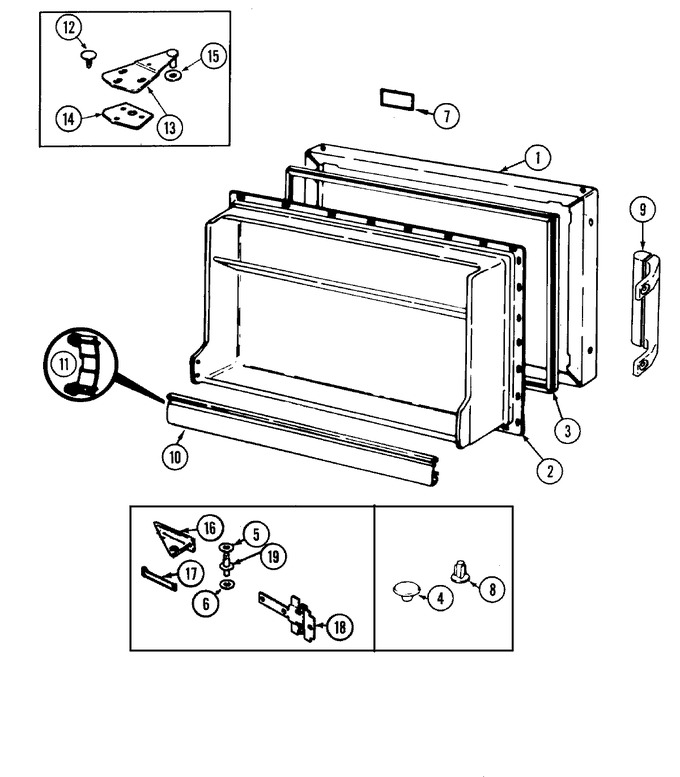

02 - Freezer Door
03 - Fresh Food Compartment
04 - Fresh Food Door
05 - Shelves & Accessories
06 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72345-9-WW | Panel, Frz. Door (wht) | 12 |
|
- | ||||
| 2 | 65275-5 | Screw | 12 |
|
- | ||||
| 2 | 69464-1 | Liner | 12 |
|
- | ||||
| 3 | 70020-1 | Gasket, Door | 12 |
|
- | ||||
| 4 | 67634-2 | Plug Button, Hinge Cup (wht) | 12 |
|
- | ||||
| 5 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) | 12 |
|
Immediately | $ 45.86 | |||
| 6 | 54233-2 | Washer | 12 |
|
- | ||||
| 7 | 66982-33 | Insert, Nameplate | 12 |
|
- | ||||
| 8 | 69922-1 | Plug Button, Handle (wht) | 12 |
|
- | ||||
| 9 | 65275-70 | Screw | 12 |
|
- | ||||
| 9 | 69168-4 | Handle, Door (wht) | 12 |
|
$ 69.03 | ||||
| 9 | 69477-2 | Anchor, Screw | 12 |
|
- | ||||
| 10 | WP61003045 | Trim, Door Shelf (Replaces: 65151-95) | 12 |
|
$ 129.55 | ||||
| 11 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) | 12 |
|
$ 9.39 | ||||
| 12 | 56144-14 | Plug Button, Upper Hinge (wht) | 12 |
|
- | ||||
| 13 | WP3-24838-048 | Screw (Replaces: 65275-52) | 12 |
|
$ 7.00 | ||||
| 13 | 53709-20 | Hinge, Upper | 12 |
|
- | ||||
| 14 | 65031-1 | Shim, Upper Hinge | 12 |
|
- | ||||
| 15 | 54233-1 | Washer | 12 |
|
$ 7.71 | ||||
| 16 | 69514-2 | Hinge, Center | 12 |
|
- | ||||
| 16 | 65275-55 | Screw | 12 |
|
- | ||||
| 17 | 69515-1 | Shim, Center Hinge | 12 |
|
- | ||||
| 18 | 69419-1 | Tapping Plate, Center Hinge | 12 |
|
- | ||||
| 19 | 69517-1 | Pin, Center Hinge | 12 |
|
- |
