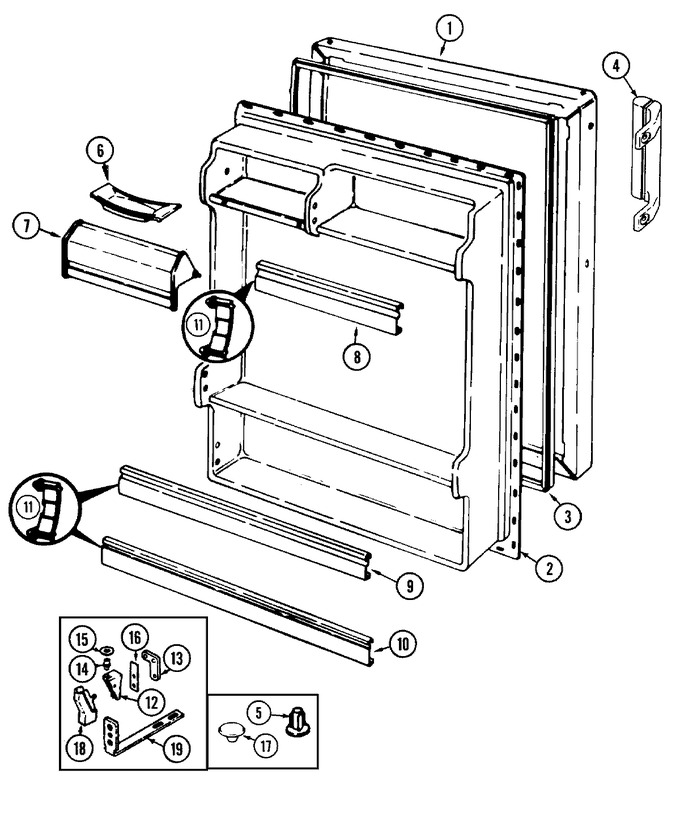

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72342-2-AM		Panel, F.f. Door (alm)	11	Appelez-nous	-
1	72349-8-AM		Panel, F.f. Door (alm)	10	Appelez-nous	-
2	65275-5		Screw	10	Appelez-nous	-
2	69443-1		Liner, F.f. Door	10	Appelez-nous	-
3	70025-2		Gasket, F.f. Door	10			$ 139.29
4	69168-5		Handle, Door (alm)	10			$ 114.87
4	70051-4		Handle, F.f. Door (alm)	11	Appelez-nous	-
4	70052-1		Frame, Handle	11	Appelez-nous	-
4	70053-17		Insert, Handle (alm)----na	11	Appelez-nous	-
4	70058-1		End Cap, Handle (alm)	11	Appelez-nous	-
4	65275-60		Screw	10	Appelez-nous	-
5	69743-1		Grommet	11	Appelez-nous	-
5	415033-1		Screw	11	Appelez-nous	-
5	67934-1		Shim, Handle	11	Appelez-nous	-
5	67678-3		Plug Button, Handle Top (alm)	10	Appelez-nous	-
6	29936-2		Tray, Butter	10	Appelez-nous	-
7	69058-2		Door, Dairy	10	Appelez-nous	-
8	WP70111-108		Trim, Shelf   (Replaces: 70111-4)	10		Immediately	$ 104.35
9	WP70111-108		Trim, Shelf   (Replaces: 70111-16)	10		Immediately	$ 104.35
10	WP70111-108		Trim, Shelf (22 11/16``)   (Replaces: 70111-19)	10		Immediately	$ 104.35
11	70197-1		Retainer, Shelf Trim	10		Immediately	$ 14.18
12	69516-4		Hinge, Lower (zinc)	10	Appelez-nous	-
12	65275-51		Screw, Lower Hinge	10	Appelez-nous	-
13	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
14	69845-1		Pin, Lower Hinge	10			$ 44.55
15	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	10		Immediately	$ 45.86
16	403100-1		Screw	10	Appelez-nous	-
16	69510-1		Shim, Lower Hinge	10	Appelez-nous	-
17	67634-3		Plug Button, Hinge Cup (alm)	10	Appelez-nous	-
18	68978-3		Cover, Lower Hinge (alm)	10	Appelez-nous	-
19	69511-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
