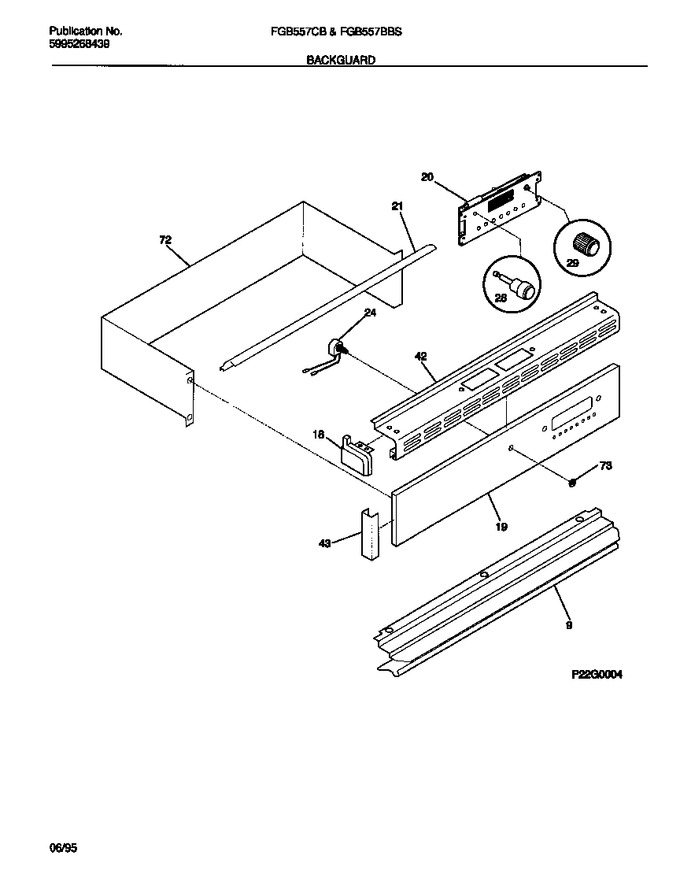

02 - Backguard
03 - Burner
04 - Body
05 - Drawer/door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 9 | 5303310387 | Trim-splasher |
|
- | |||||
| 18 | 5303310390 | End Cap, Lh |
|
- | |||||
| 18 | 5303310392 | End Cap, Rh |
|
- | |||||
| 19 | 5303310382 | Panel-control |
|
- | |||||
| 20 | 5303310380 | Clock/timer, Electronic |
|
- | |||||
| 21 | 5303271091 | Trim-canopy/shield |
|
- | |||||
| 24 | 3202654 | Switch-light/lamp |
|
- | |||||
| 28 | 5303302402 | Knob-clock |
|
- | |||||
| 29 | 5303302399 | Knob-clock |
|
- | |||||
| 42 | 5303271090 | Trim-vent |
|
- | |||||
| 43 | 5303310385 | Trim-end, (2) |
|
- | |||||
| 72 | 5303210685 | Wrapper-shield |
|
- | |||||
| 73 | 5303310393 | Bracket, Light Switch |
|
- |
