Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5303280375		Box-oven Burner		Appelez-nous	-
6	5303299366		Shelf-oven		Appelez-nous	-
8	5303296327		Panel-oven Bottom		Appelez-nous	-
11	5303271097		Bracket,light Switch		Appelez-nous	-
14	08011171		Socket-light/lamp, Oven		Appelez-nous	-
15	3201908		Lamp-oven Light		Appelez-nous	-
16	5304524341		Glass-oven Light Lens   (Replaces: 3201911)			Immediately	$ 14.18
17	3204483		Retainer-lens		Appelez-nous	-
18	3051648		Latch-door		Appelez-nous	-
25	5303210844		Shield-heat, Lower		Appelez-nous	-
33	5303302719		Shield, Rear Wall		Appelez-nous	-
36	3203725		Flue		Appelez-nous	-
37	5303210806		Probe-oven Temp		Appelez-nous	-
55	5303210822		Shield-flue		Appelez-nous	-
56	5303310397		Trim-bodyside		Appelez-nous	-
57	5303308476		Cover-access		Appelez-nous	-
58	5303210713		Insulation, Oven Back		Appelez-nous	-
58	5303210708		Insulation, Oven Bottom		Appelez-nous	-
70	5303210843		Shield-insulation		Appelez-nous	-
70	318071410		Shield-insulation		Appelez-nous	-
80	5303301261		Spring,oven		Appelez-nous	-
83	5303296407		Liner-oven Assy		Appelez-nous	-
86	3201631		Channel, Hinge				$ 58.22
87	5303308443		Bracket-safety Valve		Appelez-nous	-
88	3016241		Rod-latch		Appelez-nous	-
89	5303269766		Motor-latch/lock		Appelez-nous	-
92	5308012004		Stud - Axle				$ 8.29
94	5303296326		Front-oven		Appelez-nous	-
96	5303210839		Duct-blower		Appelez-nous	-
97	5303210683		Wrapper, Top		Appelez-nous	-
99	5303299686		Support,adjustable		Appelez-nous	-
100	5303302715		Shield,flue ,bottom		Appelez-nous	-
103	5303317097		Trim-base		Appelez-nous	-
104	3203730		Adapter-flue		Appelez-nous	-
106	5303308461		Bracket-latch		Appelez-nous	-
108	318073000		Motor-blower		Appelez-nous	-
117	5303302718		Bracket-thermo Protector		Appelez-nous	-
118	3051647		Housing-door Latch		Appelez-nous	-
119	5303210644		Switch-thermo		Appelez-nous	-
120	3203688		Support,oven Front		Appelez-nous	-
121	5303305036		Wrapper-base		Appelez-nous	-
122	5303210706		Shield-insulation, Base		Appelez-nous	-
123	3203684		Shield-oven, Top & Sides		Appelez-nous	-
*57164	3051070		Screw, Hex Washer Head, 10-24 X 7/16, Special		Appelez-nous	-
*57165	3201632		Spacer-oven		Appelez-nous	-
*57166	3131903		Bumper				$ 55.36
*57167	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*57168	08002868		Screw 10 X 24 X 1/2				$ 14.18
*57169	3019069		Housing-latch		Appelez-nous	-
*57170	5303210705		Angle-burner Box		Appelez-nous	-
*57171	5303210709		Insulation, Adaptor		Appelez-nous	-
*57172	5303210710		Insulation, Oven Bottom		Appelez-nous	-
*57173	5303210851		Shield-insulation, Base		Appelez-nous	-
*57174	318119300		Shield,bodyside		Appelez-nous	-
10A	5303310521		Pan-broiler		Appelez-nous	-
10B	5303310520		Insert-broiler Pan		Appelez-nous	-
116A	5303210711		Insulation-bottom, Sides, (2)		Appelez-nous	-
116B	5303210712		Insulation-bottom, Top (not Illustrated)		Appelez-nous	-
12A	5303275924		Switch-door				$ 92.03
12B	5303308447		Screw, Switch-ovn Lght (not Illustrated)		Appelez-nous	-
13A	3202077		Rod-light Switch		Appelez-nous	-
13B	3204114		Spring-rod (not Illustrated)		Appelez-nous	-
39A	5303308453		Cord,electric Power		Appelez-nous	-
39B	3018802		Clip-cable (not Illustrated)		Appelez-nous	-
58A	5303210707		Insulation, Top & Sides		Appelez-nous	-
58B	5303210714		Insulation, Oven Top		Appelez-nous	-
7A	316009400		Hinge-oven Door, (2)		Appelez-nous	-
7B	3201899		Washer, Hinge Assy, (4) (not Illustrated)		Appelez-nous	-
97A	318066800		Wrapper, Back & Sides		Appelez-nous	-
97B	5303210681		Wrapper, Top		Appelez-nous	-
98A	3203665		Trim-side, Inner, Lh		Appelez-nous	-
98B	3203664		Trim-side, Inner, Rh (not Illustrated)		Appelez-nous	-

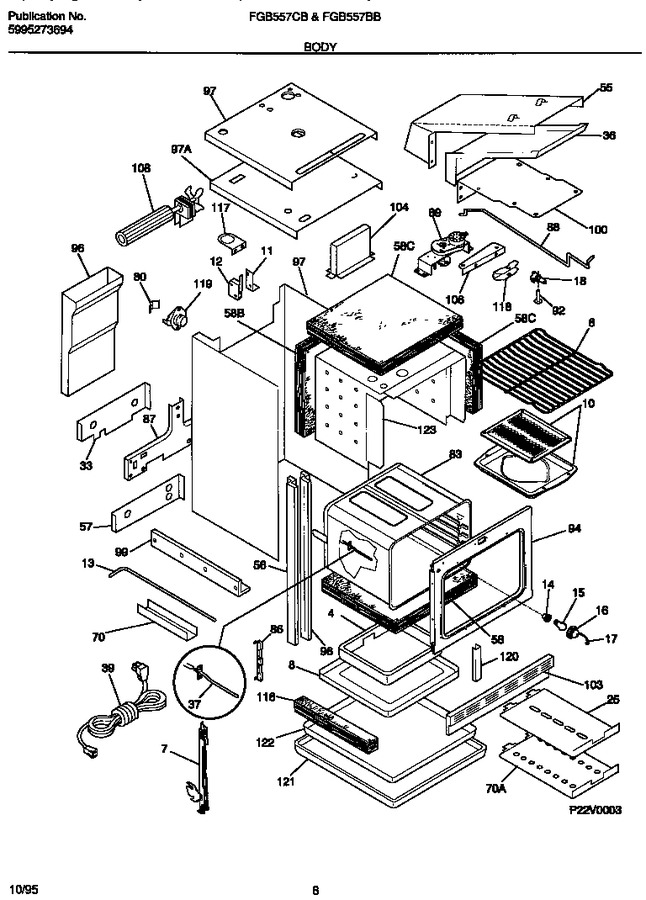

    View Diagram in Separate Window       Print Part List
