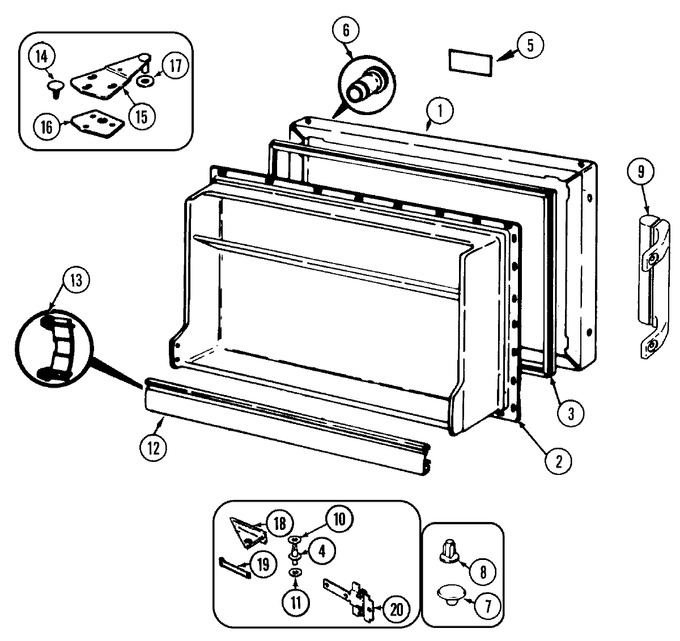

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72342-101-WW		Panel, Frz. Door (wht)	11	Appelez-nous	-
1	72345-9-WW		Panel, Frz. Door (wht)	10	Appelez-nous	-
2	65275-5		Screw	10	Appelez-nous	-
2	69464-1		Liner	10	Appelez-nous	-
3	70025-1		Gasket, Frz. Door	10	Appelez-nous	-
4	69517-2		Pin, Center Hinge	10	Appelez-nous	-
5	66982-33		Insert, Nameplate	10	Appelez-nous	-
6	29356-1		Retainer, Nameplate	10	Appelez-nous	-
7	67634-2		Plug Button, Hinge Cup (wht)	10	Appelez-nous	-
8	67678-2		Plug Button (wht)	10	Appelez-nous	-
9	69168-4		Handle, Door (wht)	10			$ 69.03
9	70052-2		Frame, Handle	11	Appelez-nous	-
9	415033-1		Screw	11	Appelez-nous	-
9	65275-60		Screw	10	Appelez-nous	-
9	67934-1		Shim, Handle	11	Appelez-nous	-
9	70050-11		Handle, Frz. Door (alm)	11	Appelez-nous	-
9	70050-10		Handle (wht)	11	Appelez-nous	-
9	69743-1		Grommet	11	Appelez-nous	-
9	70053-2		Insert, Handle (wht)	11	Appelez-nous	-
10	67483-6		Washer	10	Appelez-nous	-
11	54233-1		Washer	10			$ 7.71
12	WP70111-108		Trim, Shelf   (Replaces: 70111-16)	10		Immediately	$ 104.35
13	70197-1		Retainer, Shelf Trim	10		Immediately	$ 14.18
14	56144-13		Plug Button, Upper Hinge (wht)	10	Appelez-nous	-
15	53709-20		Hinge, Upper	10	Appelez-nous	-
15	WP3-24838-048		Screw   (Replaces: 65275-52)	10			$ 7.00
16	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
17	54233-7		Washer	10	Appelez-nous	-
18	65275-55		Screw	10	Appelez-nous	-
18	69514-2		Hinge, Center	10	Appelez-nous	-
19	69515-1		Shim, Center Hinge	10	Appelez-nous	-
20	69419-1		Tapping Plate, Center Hinge	10	Appelez-nous	-
