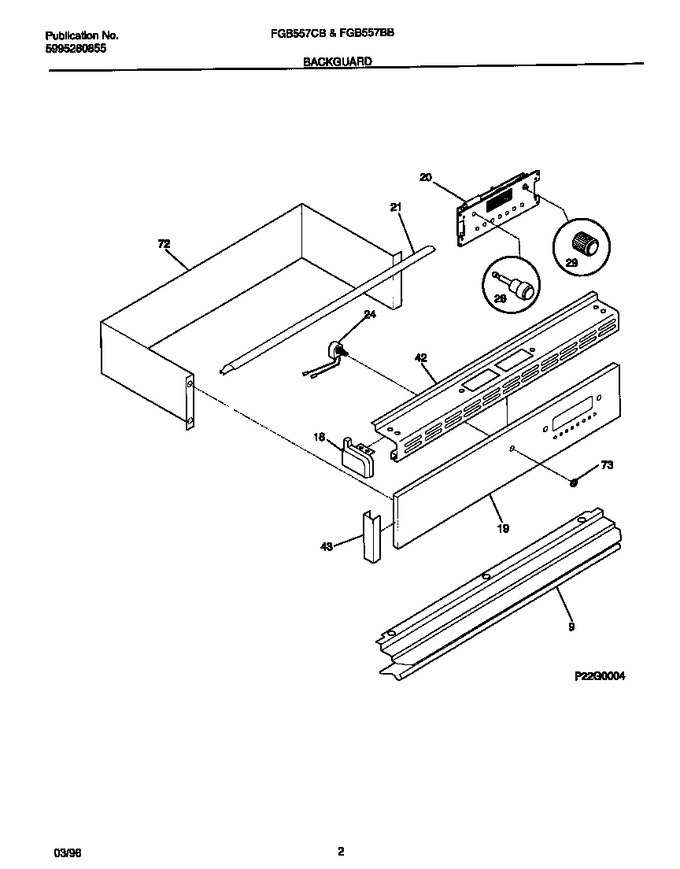

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Drawer/door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	5303310388		Trim-splasher		Appelez-nous	-
18	5303317100		End Cap, Almond, Rh (not Illustrated)		Appelez-nous	-
18	5303317101		End Cap, Almond, Lh		Appelez-nous	-
19	5303310382		Panel-control		Appelez-nous	-
20	5303310380		Clock/timer, Electronic		Appelez-nous	-
21	5303271091		Trim-canopy/shield, White		Appelez-nous	-
24	3202654		Switch-light/lamp		Appelez-nous	-
28	5303302402		Knob-clock/timer, Almond		Appelez-nous	-
29	5303302399		Knob-clock, Almond		Appelez-nous	-
42	5303308462		Trim-vent		Appelez-nous	-
43	5303310385		Trim-end, (2)		Appelez-nous	-
72	5303210685		Wrapper-shield		Appelez-nous	-
73	5303310393		Bracket, Light Switch		Appelez-nous	-
*21600	5303308450		Screw, 8 X 3/8, Clock/door		Appelez-nous	-
*21601	5303323137		Screw, Switch Mtg, (6)   (Replaces: 5303305528)				$ 11.88

    View Diagram in Separate Window       Print Part List
