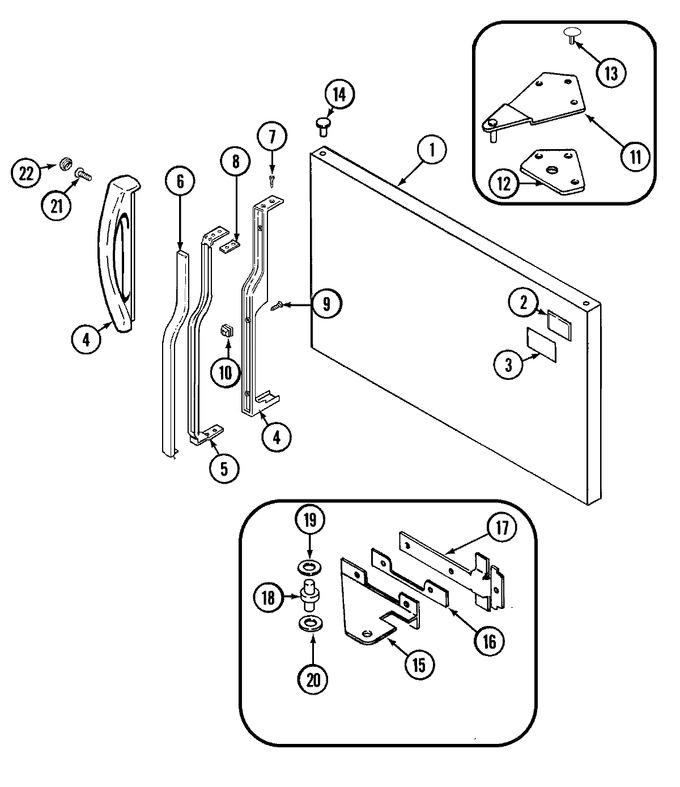

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72342-101-AM		Panel, Frz. Door (alm)	10	Appelez-nous	-
1	61001725		Panel, Frz. Door (alm)	13	Appelez-nous	-
2	66981-6		Bezel, Nameplate (alm)	10	Appelez-nous	-
3	66982-34		Insert, Nameplate	10	Appelez-nous	-
4	61001148		Handle, Frz. Door (alm)	10	Appelez-nous	-
4	61001718		Handle, Door (alm)	13	Appelez-nous	-
4	69480-4		Plug Button (alm)	10	Appelez-nous	-
5	70052-2		Frame, Handle	10	Appelez-nous	-
6	70053-1		Insert, Handle (alm)	10	Appelez-nous	-
7	65275-57		Screw	10	Appelez-nous	-
8	67934-1		Shim, Handle	10	Appelez-nous	-
9	415033-1		Screw	10	Appelez-nous	-
10	69743-1		Grommet	10	Appelez-nous	-
11	WP3-24838-048		Screw, Upper Hinge   (Replaces: 65275-86)	10			$ 7.00
11	53709-24		Hinge, Upper	10	Appelez-nous	-
12	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
13	56144-9		Plug Button, Hinge Screw (alm)	10	Appelez-nous	-
14	67634-3		Plug Button, Hinge Cup (alm)	10	Appelez-nous	-
15	69514-3		Hinge	10	Appelez-nous	-
15	65275-62		Screw	10	Appelez-nous	-
16	69515-1		Shim, Center Hinge	10	Appelez-nous	-
17	69419-1		Tapping Plate, Center Hinge	10	Appelez-nous	-
17	65275-61		Screw	10	Appelez-nous	-
18	69517-2		Pin, Center Hinge	10	Appelez-nous	-
19	67483-6		Washer	10	Appelez-nous	-
20	54233-1		Washer	10			$ 7.71
21	65275-70		Screw	13	Appelez-nous	-
22	69922-2		Plug, Button (alm)	13	Appelez-nous	-
