SELECT A DIAGRAM

01 - Cover

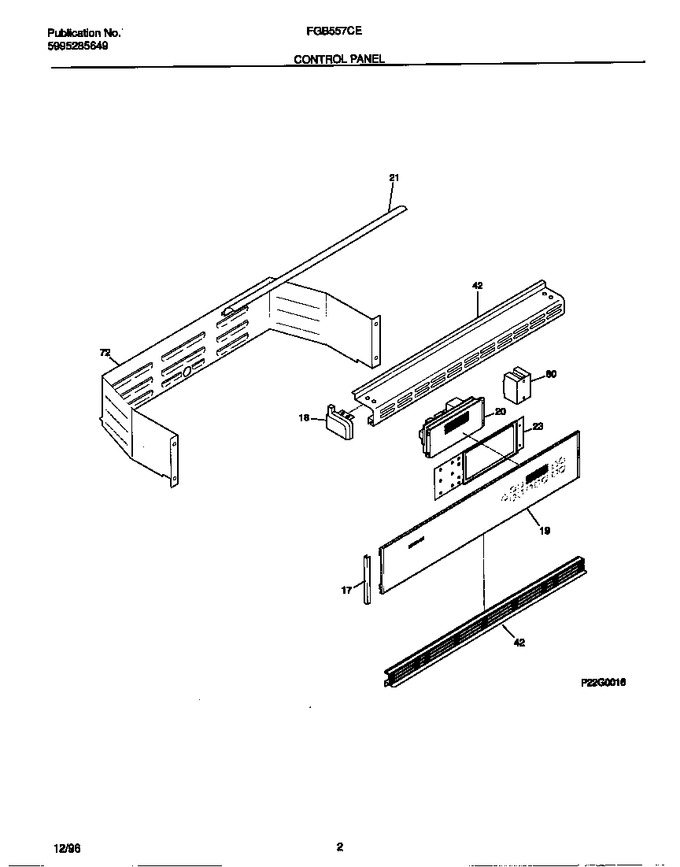

02 - Control Panel


03 - Burner


04 - Body


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	5303308451		Trim-splasher		Appelez-nous	-
18	5303280338		End Cap, Black, Rh (not Illustrated)		Appelez-nous	-
18	5303280339		End Cap, Black, Lh		Appelez-nous	-
19	318030700		Panel-control, Black		Appelez-nous	-
20	318010800		Clock/timer, Electronic		Appelez-nous	-
21	318056901		Trim-canopy/shield, Black				$ 293.32
23	318111610		Bracket-clock Mtg		Appelez-nous	-
42	5303310388		Trim-vent		Appelez-nous	-
43	5303310386		Trim-end, (2)		Appelez-nous	-
72	5303210685		Wrapper-shield		Appelez-nous	-
*13960	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*13961	5303323137		Screw, Switch Mtg, (6)   (Replaces: 5303305528)				$ 11.88
*13962	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-
*13963	5304414648		Screw, 10-24 X 1/4, Rail Mtg, Control Pnl   (Replaces: 5303308458)				$ 14.18
80A	318111500		Relay, (2)		Appelez-nous	-
80B	318111700		Bracket-relay (not Illustrated)		Appelez-nous	-
80C	5303320666		Spacer-bracket Relay (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
