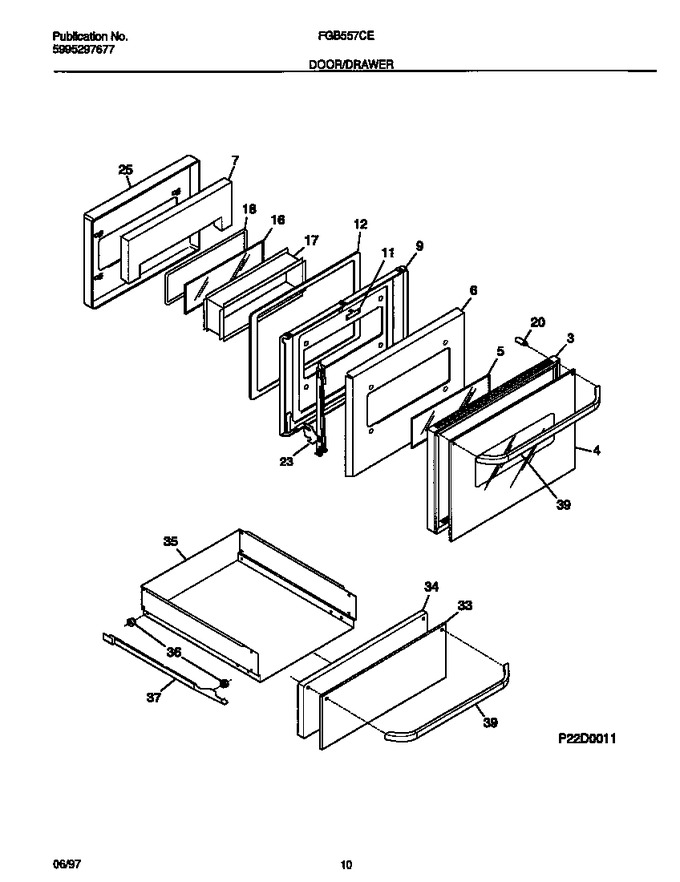

06 - Door/drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303212560		Trim-oven Door, Black		Appelez-nous	-
4	3202420		Glass-oven Door, Black, Outer		Appelez-nous	-
5	5303016336		Glass-oven Door, Heat Barrier		Appelez-nous	-
6	5303210005		Shield - Air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
9	318038600		Liner,oven Door		Appelez-nous	-
11	5301167830		Strike Plate		Appelez-nous	-
12	3205189		Seal-oven Door		Appelez-nous	-
16	5303210001		Glass-oven Door, Heat Barrier		Appelez-nous	-
17	318139100		Spacer-glass		Appelez-nous	-
18	3016263		Seal-rope				$ 66.15
20	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
25	318048300		Liner-door Baffle		Appelez-nous	-
33	3203715		Glass-drawer, Front		Appelez-nous	-
34	5303210010		Panel-inner Drawer		Appelez-nous	-
35	3051058		Drawer-utility		Appelez-nous	-
36	5303935079		Roller		Appelez-nous	-
39	318362822		Handle-door, Black, Oven   (Replaces: 316091103)				$ 104.05
39	318014300		Spacer-handle, Black, (2) (not Illustrated)				$ 36.44
*28186	08016432		Screw, Truss Head, 8-18 X 3/8, (4)		Appelez-nous	-
*28187	318139200		Collar-glass Mtg		Appelez-nous	-
*28188	3202113		Button, Plug		Appelez-nous	-
*28189	318122101		Bracket-glass		Appelez-nous	-
*28190	318139201		Collar-glass Mtg		Appelez-nous	-
*28191	5303271093		Reflector, Aluminum Foil		Appelez-nous	-
*28192	5303300414		Spacer, Cork & Rubber				$ 13.18
*28193	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*28194	5303316982		Tape, Seal, (3)		Appelez-nous	-
23A	318074100		Hinge, Oven Door, (2)		Appelez-nous	-
23B	3201899		Washer, Hinge Assy, (4) (not Illustrated)		Appelez-nous	-
37A	3203723		Rail,drawer ,lh		Appelez-nous	-
37B	3203722		Rail-drawer Rh (not Illustrated)		Appelez-nous	-
37C	5304414648		Screw, 10-24 X 1/4, Rail Mtg, Control Pnl (not Illustrated)   (Replaces: 5303308458)				$ 14.18
39A	5303311217		Screw-handle, Door (not Illustrated)				$ 12.71
39B	5303310510		Screw-handle, Drawer (not Illustrated)				$ 14.18
