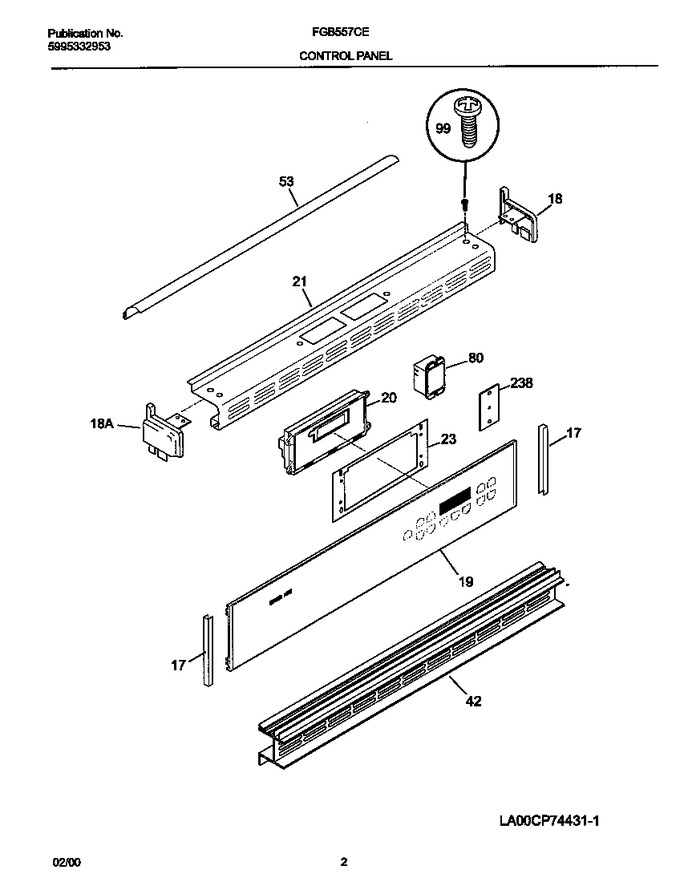

02 - Control Panel


03 - Door


04 - Body


05 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
17	5303310386		Trim-end, (2)		Appelez-nous	-
18	5303280338		End Cap, Black, Rh		Appelez-nous	-
18	5303280339		End Cap, Black, Lh		Appelez-nous	-
19	318030700		Panel-control, Black		Appelez-nous	-
20	318010800		Clock/timer, Electronic		Appelez-nous	-
21	5303308451		Trim-splasher, Black		Appelez-nous	-
23	318111610		Bracket Timer		Appelez-nous	-
42	5303310388		Trim-vent, Black		Appelez-nous	-
53	318056901		Deflector Trim,black				$ 293.32
80	318111500		Relay,convection ,oven Light ,(2)		Appelez-nous	-
99	5303311528		Screw 6-20x5/8 Oval Hd Ab Aqdr,oval Hd ,6-20 X 5/8,black		Appelez-nous	-
238	318111700		Bracket-relay		Appelez-nous	-
*41880	3201861		Screw, 6 X 3/8				$ 0.76
*41881	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*41882	5303288566		Screw,8 X 1/4   (Replaces: 5303323130)				$ 2.12
