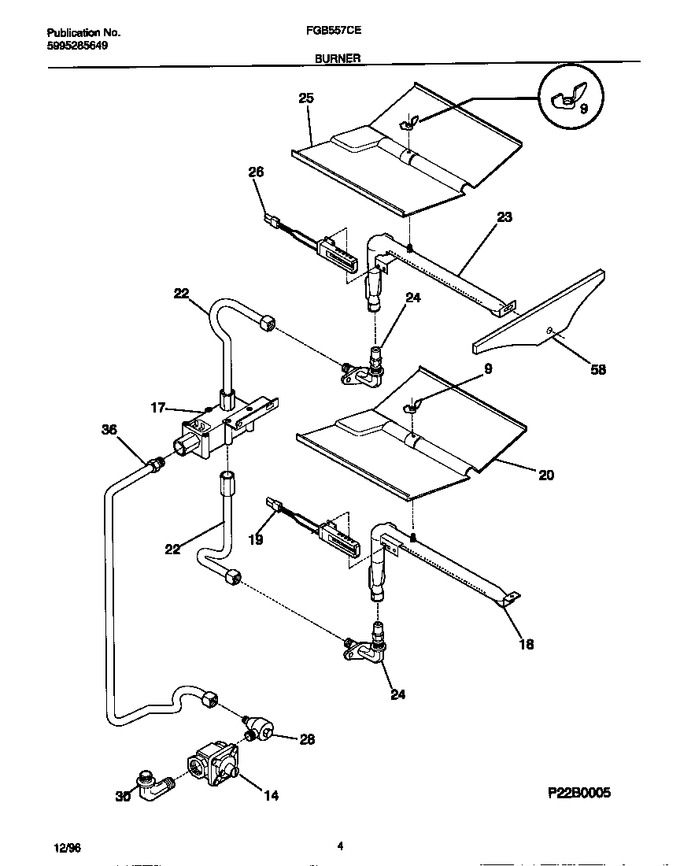

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	08007979		Nut		Appelez-nous	-
14	5303210167		Regulator,pressure		Appelez-nous	-
17	5303210798		Valve-safety			Immediately	$ 587.56
19	5303308452		Ignitor-oven		Appelez-nous	-
20	3203676		Baffle,oven Burner		Appelez-nous	-
22	5303271092		Tubing,valve		Appelez-nous	-
23	5303283132		Burner,broiler		Appelez-nous	-
25	5303210792		Baffle-broiler		Appelez-nous	-
26	5303935068		Ignitor-broiler				$ 166.55
28	5303295305		Valve-shut Off		Appelez-nous	-
30	5303305657		Mixer		Appelez-nous	-
36	5303210796		Tubing-thermo/safety		Appelez-nous	-
58	318123600		Shield, Broiler		Appelez-nous	-
*13964	3051070		Screw, Hex Washer Head, 10-24 X 7/16, Special		Appelez-nous	-
*13965	154079601		Nut   (Replaces: 3201885)				$ 0.41
*13966	08002868		Screw 10 X 24 X 1/2				$ 14.18
*13967	5303311306		Screw, 8-18 X 3/8		Appelez-nous	-
18A	5303210787		Burner-oven		Appelez-nous	-
18B	5303311549		Screw-burner Mtg (not Illustrated)		Appelez-nous	-
24A	5303210786		Mixer Elbow, Bake		Appelez-nous	-
24B	5303210807		Mixer Elbow, Broiler		Appelez-nous	-
