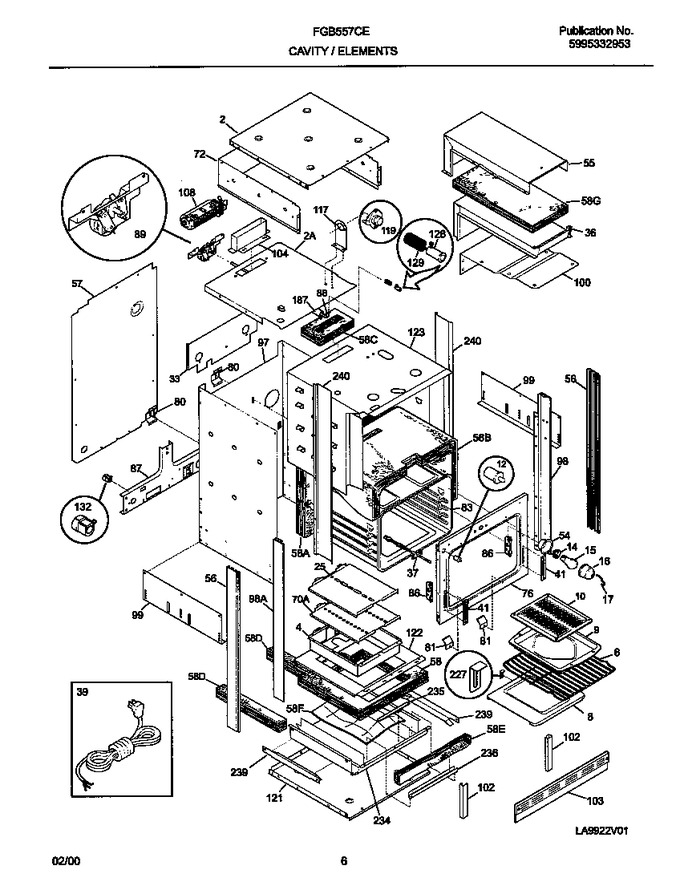

SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Burner


04 - Body


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	318102400		Mid Top Cover		Appelez-nous	-
2	318145003		Wrapper-base		Appelez-nous	-
4	318161500		Box-oven Burner		Appelez-nous	-
6	5303299366		Rack-oven		Appelez-nous	-
8	318121400		Panel-oven Bottom		Appelez-nous	-
9	318138800		Pan-broiler		Appelez-nous	-
10	318126400		Insert-broiler Pan		Appelez-nous	-
12	318394803		Switch-light   (Replaces: 318089910)			Immediately	$ 44.23
14	316116400		Socket-light/lamp   (Replaces: 5308011085)			Immediately	$ 56.10
15	3201908		Lamp-oven Light		Appelez-nous	-
16	5304524341		Glass-oven Light Lens   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer Lenz		Appelez-nous	-
25	5303210844		Shield-heat, Lower		Appelez-nous	-
33	318187301		Shield-housing		Appelez-nous	-
36	3203725		Flue		Appelez-nous	-
37	318087701		Probe-oven Temp				$ 303.77
39	5303308453		Cord,electric Power		Appelez-nous	-
41	5303310526		Cover-hinge Cutout				$ 83.00
54	5303310514		Housing-oven Light		Appelez-nous	-
55	5303326219		Shield,flue		Appelez-nous	-
56	5303308459		Trim-bodyside		Appelez-nous	-
57	318071130		Shield,rear Wall		Appelez-nous	-
58	5303323699		Insulation,wrapper		Appelez-nous	-
58	5303326123		Insulation,oven Back		Appelez-nous	-
58	5303326122		Insulation Deflector		Appelez-nous	-
58	5303326121		Insulation,oven Bottom		Appelez-nous	-
58	5303326120		Insulation Adaptor		Appelez-nous	-
58	5303326119		Insulation,flue		Appelez-nous	-
58	5303326118		Insulation Deflector		Appelez-nous	-
70	5303210843		Shield-insulation		Appelez-nous	-
72	5303210685		Wrapper-shield		Appelez-nous	-
76	318056137		Front-oven		Appelez-nous	-
80	5303301261		Spring,oven		Appelez-nous	-
81	5303323710		Bracket-oven		Appelez-nous	-
83	318089410		Liner-oven Assy		Appelez-nous	-
86	5303310524		Channel-hinge		Appelez-nous	-
87	5303308443		Bracket-safety Valve		Appelez-nous	-
88	318118903		Rod-latch		Appelez-nous	-
97	318066802		Wrapper-back Side		Appelez-nous	-
98	318029400		Trim-side, Inner, Rh		Appelez-nous	-
98	318029401		Trim-side, Inner, Lh		Appelez-nous	-
99	5303299686		Support,adjustable		Appelez-nous	-
100	5303302715		Shield,flue ,bottom		Appelez-nous	-
102	3203688		Support,oven Front		Appelez-nous	-
103	5303316734		Trim-base		Appelez-nous	-
104	318170210		Flue		Appelez-nous	-
108	318073001		Motor-fan		Appelez-nous	-
117	5303302718		Bracket-thermo Protector		Appelez-nous	-
118	318054801		Bracket-latch		Appelez-nous	-
119	5303326252		Switch-thermal		Appelez-nous	-
121	318145001		Wrapper-base		Appelez-nous	-
122	318179000		Shield-insulation,base		Appelez-nous	-
123	318071421		Shield-insulation,top & Sides		Appelez-nous	-
128	5303311163		Bushing		Appelez-nous	-
129	5303311164		Spring				$ 18.95
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
187	318013501		Tube, Rod-latch		Appelez-nous	-
227	5303323958		Retainer,oven Bottom		Appelez-nous	-
234	5303210851		Shield, Burner Box		Appelez-nous	-
235	5303326207		Bracket <072 1091001 >		Appelez-nous	-
236	318108900		Shield,insulation ,1.25x1.0x12.9		Appelez-nous	-
239	5303326183		Angle,burner Box		Appelez-nous	-
240	318119300		Shield,bodyside		Appelez-nous	-
*41889	08002868		Screw 10 X 24 X 1/2				$ 14.18
*41890	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*41891	5303300195		Screw,10-32 X 0.375 ,terminal Block ,(2)		Appelez-nous	-
*41892	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
*41893	5303935083		Screw 10-16x1-1/4				$ 9.19
89A	318095903		Motor-latch Assy		Appelez-nous	-
89B	318120710		Switch-door,(2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
