SELECT A DIAGRAM
01 - Freezer Compartment
02 - Optional Ice Maker Kit

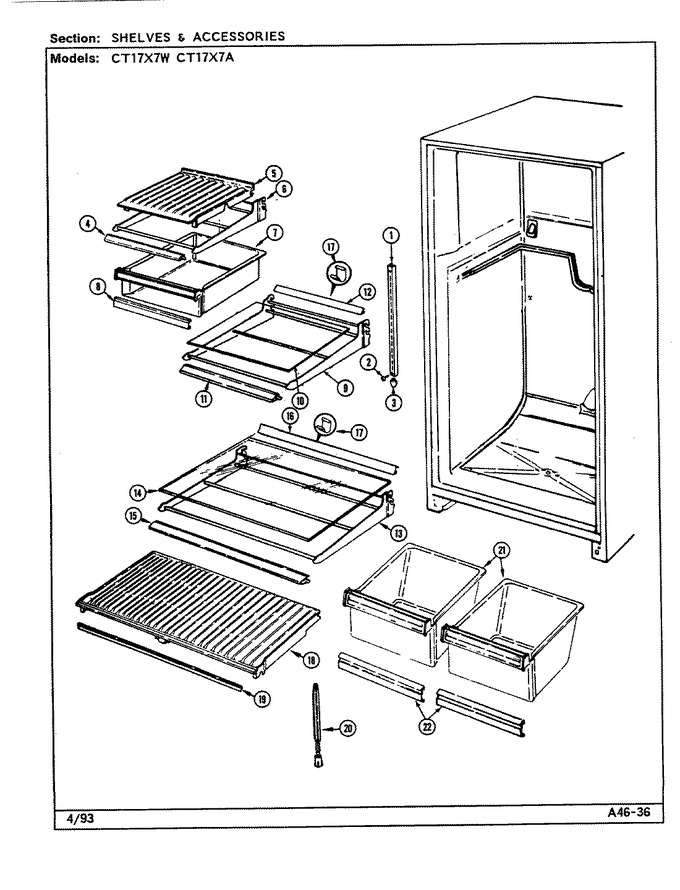

03 - Shelves & Accessories
04 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 60096-8 | Rail, Shelf Support (rt) |
|
- | |||||
| 1 | 60096-9 | Rail, Shelf Support (center) |
|
- | |||||
| 1 | 60096-7 | Rail, Shelf Support (lt) |
|
- | |||||
| 2 | 400037-28 | Screw |
|
- | |||||
| 3 | 60340-1 | End Cap, Center Rail |
|
- | |||||
| 4 | 60524-6 | Trim, Meat Shelf (front) |
|
- | |||||
| 5 | 60075-7 | Cover, Meat Pan |
|
- | |||||
| 6 | 60416-13 | Shelf, Meat |
|
- | |||||
| 7 | 66636-37 | Pan, Meat |
|
- | |||||
| 8 | 60132-102 | Handle, Meat Keeper |
|
- | |||||
| 9 | 60570-49 | Frame, Shelf |
|
- | |||||
| 10 | 66604-29 | Shelf |
|
- | |||||
| 11 | 60524-30 | Trim, Split Shelf (front) |
|
- | |||||
| 12 | 65276-2 | Trim, Split Shelf (rear) |
|
- | |||||
| 13 | 60570-46 | Frame, Shelf |
|
- | |||||
| 14 | 66604-28 | Shelf |
|
- | |||||
| 15 | 60524-21 | Trim, Full Shelf (front) |
|
- | |||||
| 16 | 65276-34 | Trim, Full Shelf (rear) |
|
- | |||||
| 17 | 66333-1 | Clip, Shelf Trim |
|
- | |||||
| 18 | 66834-1 | Shelf, Crisper |
|
- | |||||
| 19 | 60454-9 | Trim, Crisper Shelf |
|
- | |||||
| 20 | 12001957 | Support, Crisper Shelf (Replaces: 66105-1) |
|
$ 3.35 | |||||
| 21 | 68221-122 | Pan, Crisper |
|
- | |||||
| 22 | 60132-103 | Handle Crisper Pan |
|
- |
