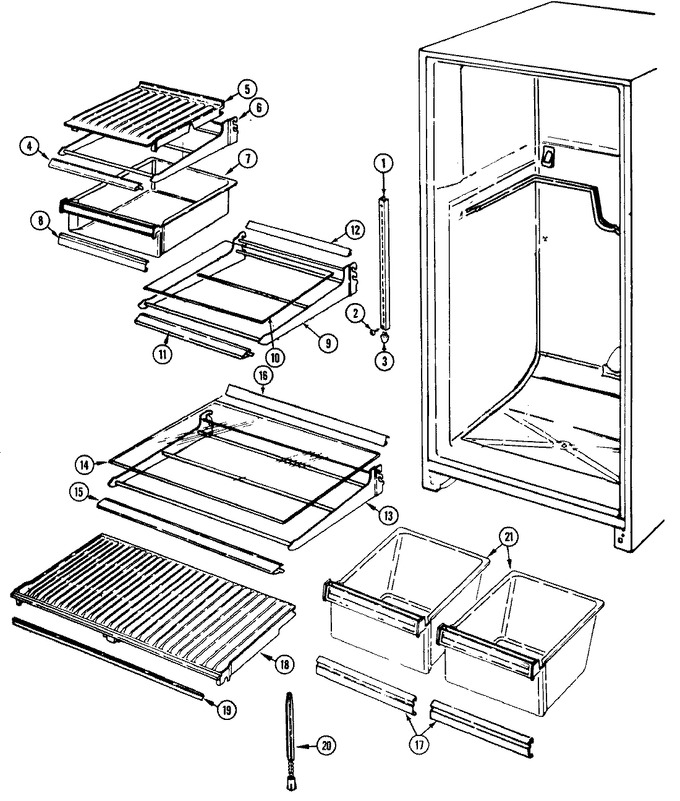

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 60096-7 | Rail, Shelf Support (lt) | 10 |
|
- | ||||
| 1 | 60096-8 | Rail, Shelf Support (rt) | 10 |
|
- | ||||
| 1 | 60096-9 | Rail, Shelf Support (center) | 10 |
|
- | ||||
| 2 | 400037-28 | Screw | 10 |
|
- | ||||
| 3 | 60340-1 | End Cap, Center Rail | 10 |
|
- | ||||
| 4 | 70108-2 | Trim, Meat Pan (frt.) | 10 |
|
- | ||||
| 5 | 60075-7 | Cover, Meat Pan | 10 |
|
- | ||||
| 6 | 70105-2 | Frame, Meat Shelf | 10 |
|
- | ||||
| 7 | 66636-37 | Pan, Meat | 10 |
|
- | ||||
| 8 | 70315-8 | Trim, Meat Pan | 10 |
|
- | ||||
| 9 | 70106-1 | Shelf, Split | 10 |
|
- | ||||
| 10 | 68139-20 | Glass, Split Shelf | 10 |
|
- | ||||
| 11 | 70107-1 | Trim, Shelf (front) | 10 |
|
- | ||||
| 12 | 70110-1 | Trim, Shelf (rear) | 10 |
|
- | ||||
| 13 | 70106-3 | Frame, Full Shelf | 10 |
|
- | ||||
| 14 | 68139-18 | Glass, Full Shelf | 10 |
|
- | ||||
| 15 | 70107-6 | Trim, Shelf (front) | 10 |
|
- | ||||
| 16 | 70110-6 | Trim, Shelf (rear) | 10 |
|
- | ||||
| 17 | 70315-7 | Trim, Crisper Pan | 10 |
|
- | ||||
| 18 | 66834-1 | Shelf, Crisper | 10 |
|
- | ||||
| 19 | 60454-9 | Trim, Crisper Shelf | 10 |
|
- | ||||
| 20 | 12001957 | Support, Crisper Shelf (Replaces: 66105-1) | 10 |
|
$ 3.35 | ||||
| 21 | 68221-122 | Pan, Crisper | 10 |
|
- |
