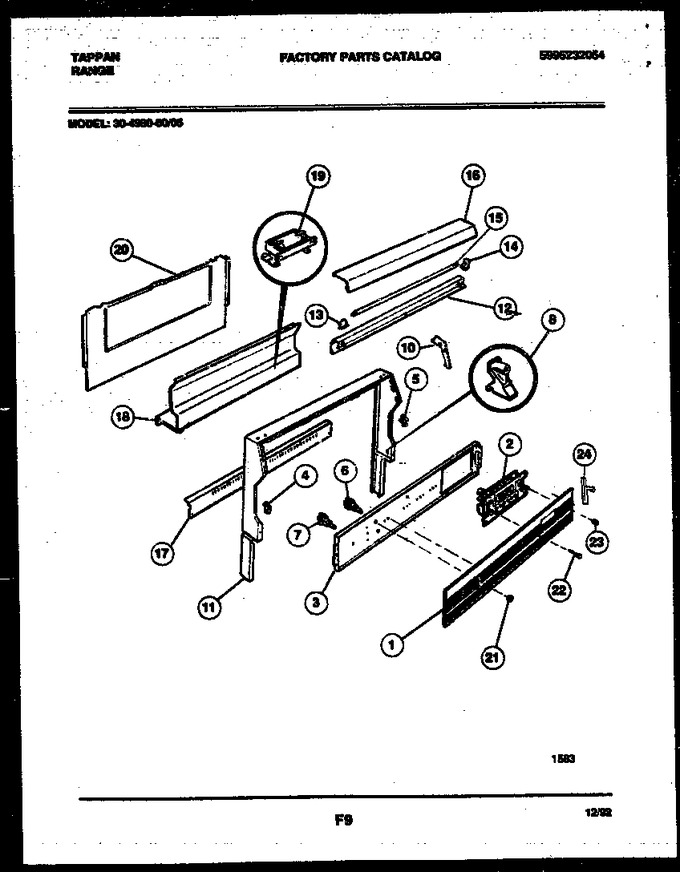

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303269561 | Glass-control |
|
- | |||||
| 2 | 5303269513 | Electronic Control |
|
- | |||||
| 3 | 316042601 | Plate - Instr. Mtg |
|
- | |||||
| 4 | 3203076 | Cap End-lh |
|
- | |||||
| 5 | 3203077 | Cap End-rh |
|
- | |||||
| 6 | 5303200480 | Switch-top Light |
|
$ 125.53 | |||||
| 7 | 5303200479 | Switch Oven Light |
|
$ 7.04 | |||||
| 8 | 5303131237 | Support, Backguard |
|
- | |||||
| 10 | 3204609 | Cap End - Lh |
|
- | |||||
| 10 | 3204610 | Cap End - Rh |
|
- | |||||
| 11 | 5303269567 | Trim-wrapper |
|
- | |||||
| 12 | 3131277 | Support - Fluor Mtg |
|
- | |||||
| 13 | 3051223 | Recept - Fluor Light Lt |
|
- | |||||
| 14 | 3051222 | Recept - Fluor Light Rt |
|
- | |||||
| 15 | 3131275 | Bulb-fluor |
|
$ 49.40 | |||||
| 16 | 3204614 | Trim - Canopy |
|
- | |||||
| 17 | 3131241 | Trim-vent |
|
- | |||||
| 18 | 3206279 | Trim-lower Splasher-white |
|
- | |||||
| 19 | 5303051115 | Ballast |
|
- | |||||
| 20 | 3131123 | Shield, Rear Wall |
|
- | |||||
| 21 | 5303011507 | Bezel-switch |
|
$ 21.47 | |||||
| 22 | 3204586 | Button-elect (8) |
|
- | |||||
| 23 | 3204590 | Knob-elect |
|
- | |||||
| 24 | 3204753 | Trim-glass Retainer,lh |
|
- | |||||
| 24 | 3204754 | Trim-glass Retainer,rh |
|
- |
