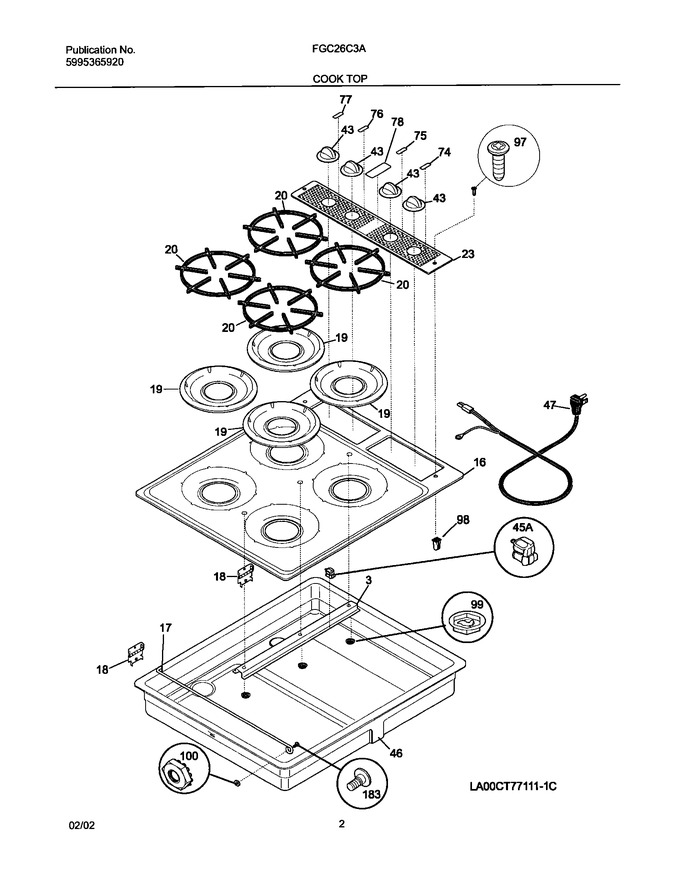

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303305547		Channel,top Stiffener		Appelez-nous	-
16	318159105		Panel,main Top ,white		Appelez-nous	-
17	3016817		Rod,maintop Support		Appelez-nous	-
18	318074310		Hinge-main Top, (2)				$ 51.98
19	318067300		Pan,burner ,(4)		Appelez-nous	-
20	316040807		Grate,black ,(4)		Appelez-nous	-
23	318021400		Panel-control		Appelez-nous	-
43	318196144		Knob,control ,black		Appelez-nous	-
46	318077303		Burner Box		Appelez-nous	-
74	318101508		Plate,control ,lf		Appelez-nous	-
75	318101509		Plate,control ,rf		Appelez-nous	-
76	318101510		Plate,control ,lr		Appelez-nous	-
77	318101511		Plate,control ,rr		Appelez-nous	-
78	318075802		Nameplate,frigidaire		Appelez-nous	-
97	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
98	5303326255		Screw Grommet		Appelez-nous	-
99	5303324192		Self Nut				$ 5.46
100	5303325982		Nut,keps ,10-32		Appelez-nous	-
183	5304410665		Screw,10-32 X 5/8		Appelez-nous	-
45A	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
F47	5303311311		Cord,electric Power		Appelez-nous	-
NI	5303311532		Screw,6-32 X 1/4`` ,back		Appelez-nous	-
