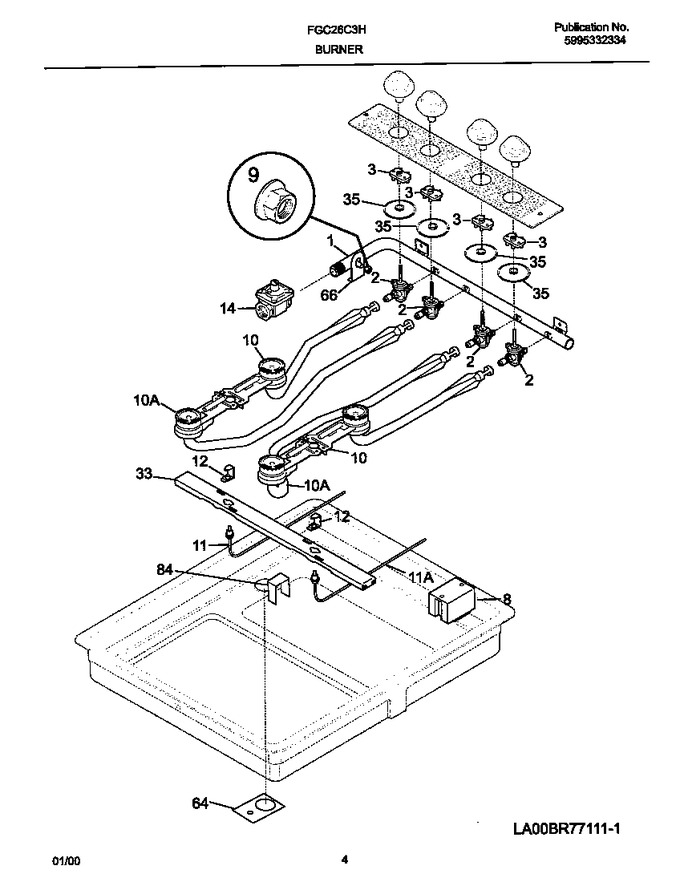

03 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303294450		Manifold Pipe		Appelez-nous	-
2	318087030		Valve-top Burner		Appelez-nous	-
3	316032001		Switch-igniter				$ 69.35
8	5303912606		Spark Module				$ 134.67
9	5303311307		Nut, Angle, 1/4-20		Appelez-nous	-
10	318176300		Burner Assembly-front		Appelez-nous	-
10	318176301		Burner Assembly-back		Appelez-nous	-
11	318148500		Ignitor-top Burner, Base, 7.25``		Appelez-nous	-
11	318148501		Ignitor-top Burner, Base, 16.25``		Appelez-nous	-
12	3016993		Retainer-igniter		Appelez-nous	-
14	5308007974		Regulator-pressure				$ 309.02
33	5303294764		Channel-burner Support		Appelez-nous	-
35	318146300		Bushing		Appelez-nous	-
64	5303294750		Retainer/bracket		Appelez-nous	-
66	5303294765		Angle, Manifold Pipe, Mtg		Appelez-nous	-
84	5303294763		Bracket,support		Appelez-nous	-
*60800	08016432		Screw,8-18 X 3/8		Appelez-nous	-
*60801	5303311306		Screw, 8-18 X 3/8		Appelez-nous	-
*60802	5303311532		Screw,6-32 X 1/4		Appelez-nous	-
*60803	5303324191		Washer		Appelez-nous	-
*60804	5304403070		Screw, 6-32 X 5/16		Appelez-nous	-
