SELECT A DIAGRAM

01 - Cover


03 - Cooktop

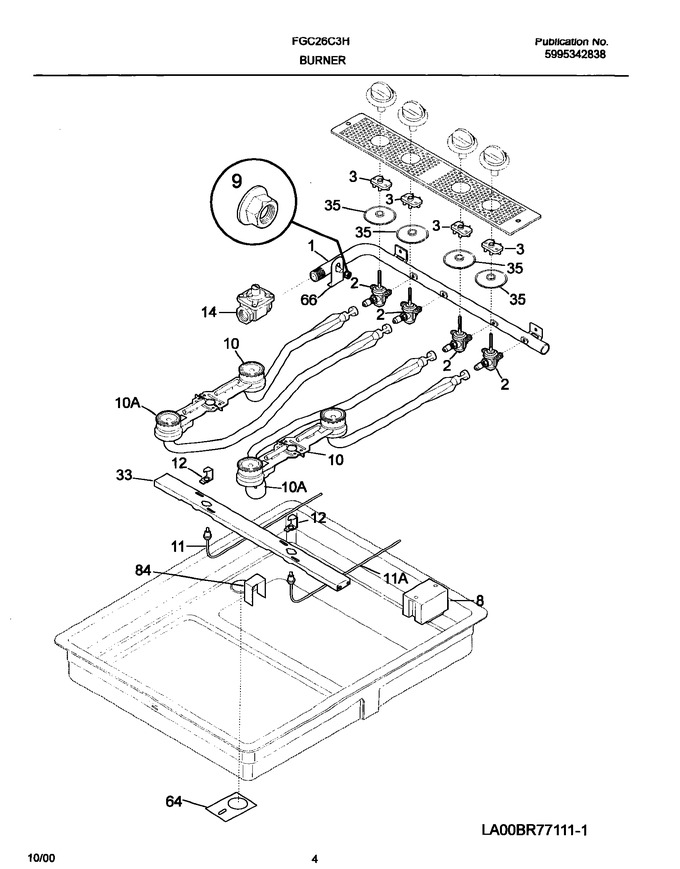

05 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	5303311307		Nut, Angle, 1/4-20		Appelez-nous	-
12	3016993		Retainer-igniter		Appelez-nous	-
33	5303294764		Channel-burner Support		Appelez-nous	-
35	318146300		Bushing		Appelez-nous	-
64	5303294750		Plate-cover		Appelez-nous	-
66	5303294765		Angle, Manifold Pipe, Mtg		Appelez-nous	-
84	5303294763		Bracket,support		Appelez-nous	-
F1	5303294450		Manifold Pipe		Appelez-nous	-
F10	318176310		Burner Top Front,front		Appelez-nous	-
F10A	318176311		Burner Top Left		Appelez-nous	-
F11	318148502		Ignitor-top Burner		Appelez-nous	-
F11A	318148503		Ignitor-top Burner		Appelez-nous	-
F14	5308007974		Regulator-pressure				$ 309.02
F2	318087030		Valve-top Burner		Appelez-nous	-
F3	316032001		Switch-igniter				$ 69.35
F8	5304518635		Spark Module   (Replaces: 316135700)				$ 87.21
NI	08016432		Screw,8-18 X 3/8		Appelez-nous	-
NI	5303311306		Screw, 8-18 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
