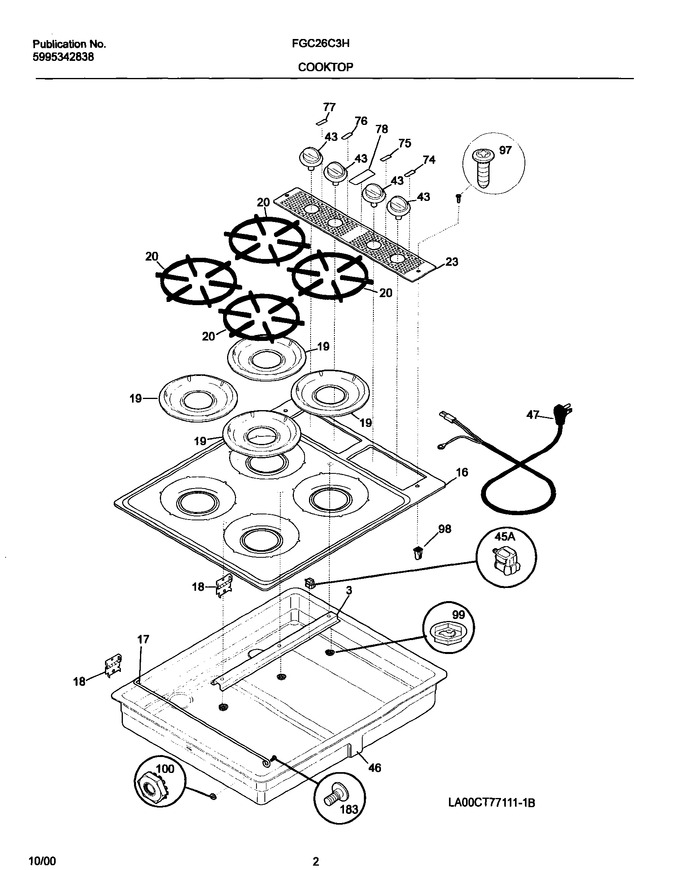

03 - Cooktop


05 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303305547		Channel,top Stiffener		Appelez-nous	-
16	318159105		Main Top, White		Appelez-nous	-
17	3016817		Rod,maintop Support		Appelez-nous	-
18	318074310		Hinge-main Top, (2)				$ 51.98
20	316040807		Grate		Appelez-nous	-
23	318021400		Panel-control		Appelez-nous	-
43	318164713		Knob-control Black		Appelez-nous	-
46	318077303		Burner Box		Appelez-nous	-
74	318101504		Plate-control, Lf		Appelez-nous	-
75	318101505		Plate-control,rf		Appelez-nous	-
76	318101506		Plate-control, Lr		Appelez-nous	-
77	318101507		Plage-control, Rr		Appelez-nous	-
78	318075801		Nameplate		Appelez-nous	-
97	5303300265		Screw, 8-18 X 1/2				$ 15.17
98	5303326255		Grommet, Plastic		Appelez-nous	-
99	5303324192		Nut				$ 5.46
100	5303325982		Nut, 10-32		Appelez-nous	-
183	5304410665		Shoulder Screw, 10-32 X 5/8		Appelez-nous	-
45A	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
F19	318067300		Pan,burner ,(4)		Appelez-nous	-
F47	5303311311		Cord, Electric		Appelez-nous	-
NI	5303311532		Screw,6-32 X 1/4		Appelez-nous	-
NI	5303324191		Washer		Appelez-nous	-
NI	5304403070		Screw, 6-32 X 5/16		Appelez-nous	-
