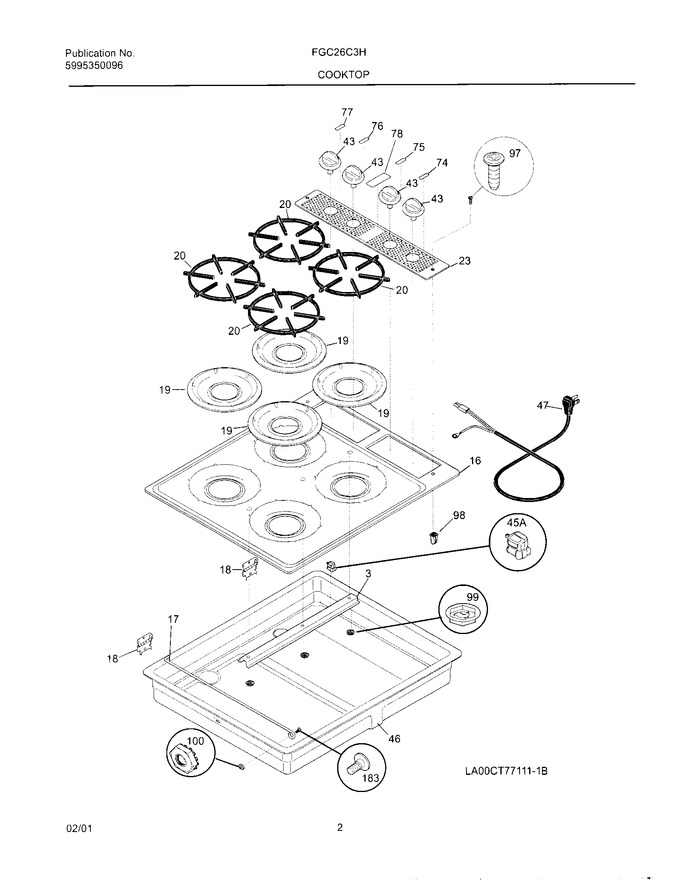

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303305547		Channel,top Stiffener		Appelez-nous	-
16	318159105		Main Top, White		Appelez-nous	-
17	3016817		Rod,maintop Support		Appelez-nous	-
18	318074310		Hinge-main Top, (2)				$ 51.98
19	318067300		Pan,burner ,(4)		Appelez-nous	-
20	316040807		Grate, (4)		Appelez-nous	-
23	318021400		Panel-control		Appelez-nous	-
43	318164713		Knob,temp Control		Appelez-nous	-
45	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
46	318077303		Burner Box		Appelez-nous	-
47	5303311311		Cord,electric Power		Appelez-nous	-
74	318101504		Plate-control, Lf		Appelez-nous	-
75	318101505		Plate-control,rf		Appelez-nous	-
76	318101506		Plate-control, Lr		Appelez-nous	-
77	318101507		Plate-control,rr		Appelez-nous	-
78	318075801		Nameplate		Appelez-nous	-
97	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
98	5303326255		Screw Grommet		Appelez-nous	-
99	5303324192		Self Nut				$ 5.46
100	5303325982		Nut, 10-32		Appelez-nous	-
183	5304410665		Screw,10-32 X 5/8		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375		Appelez-nous	-
NI	5304453707		Screw, 8-32 X 3/8, (6)   (Replaces: 5303311333)			Immediately	$ 15.92
NI	5303311532		Screw, Back		Appelez-nous	-
NI	318174300		Box & Grate Assy		Appelez-nous	-
NI	318047105		Wiring Diagram		Appelez-nous	-
NI	318075402		Panel-control Assy		Appelez-nous	-
