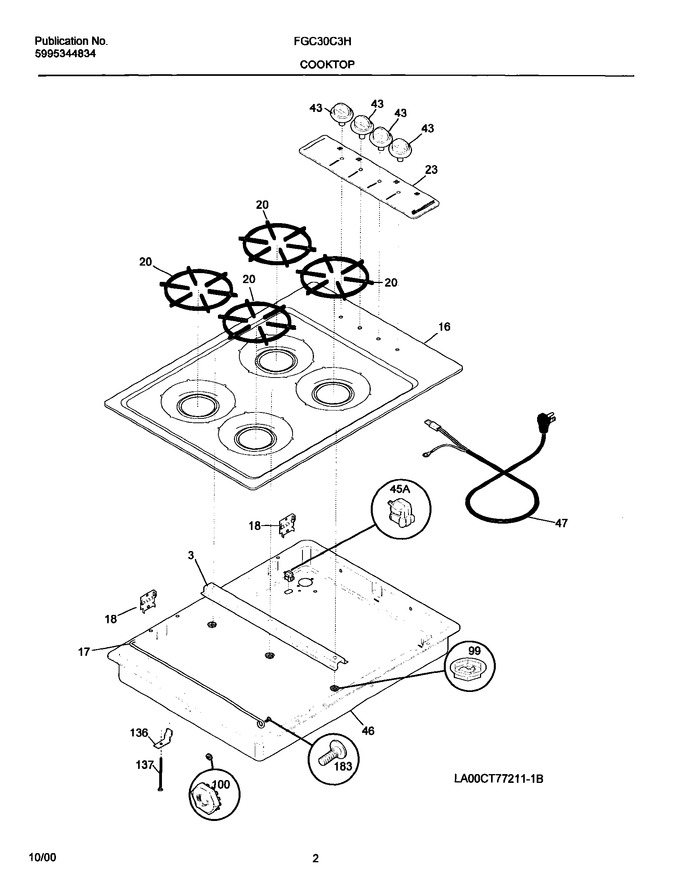

03 - Cooktop


05 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303305547		Channel,top Stiffener		Appelez-nous	-
16	318159115		Main Top, Almond		Appelez-nous	-
17	3016817		Rod,maintop Support		Appelez-nous	-
18	318074310		Hinge Main Top				$ 51.98
20	316040807		Grate		Appelez-nous	-
23	318021600		Panel-control		Appelez-nous	-
43	318164706		Knob-control Black		Appelez-nous	-
46	318077411		Burner Box		Appelez-nous	-
99	5303324192		Nut				$ 5.46
100	5303325982		Nut, 10-32		Appelez-nous	-
136	5303935029		Support				$ 61.79
137	5303323138		Screw,10-24x1/2				$ 14.13
183	5304410665		Shoulder Screw, 10-32 X 5/8		Appelez-nous	-
45A	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
F47	5303303991		Cord-electric Power				$ 96.50
NI	5304403070		Screw, 6-32 X 5/16		Appelez-nous	-
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	5303323140		Screw Ground		Appelez-nous	-
NI	5303311532		Screw,6-32 X 1/4		Appelez-nous	-
NI	5303324191		Washer		Appelez-nous	-
NI	5303311306		Screw, 8-18 X 3/8		Appelez-nous	-
