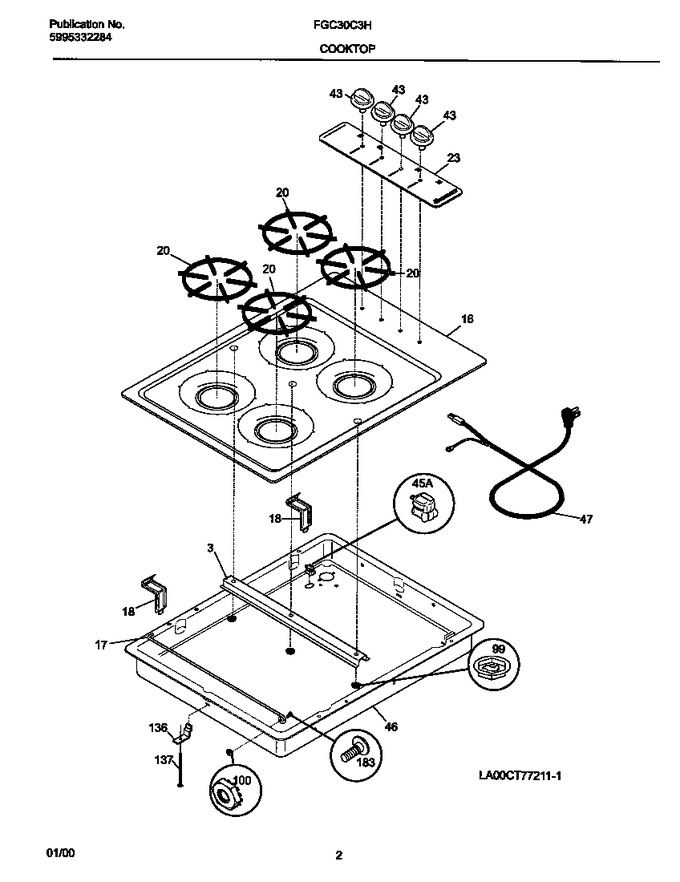

02 - Cooktop
03 - Burner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303305547 | Channel,top Stiffener |
|
- | |||||
| 16 | 318159116 | Main Top, White |
|
- | |||||
| 17 | 3016817 | Rod,maintop Support |
|
- | |||||
| 18 | 318074310 | Hinge-main Top, (2) |
|
$ 51.98 | |||||
| 20 | 316040807 | Grate, (4) |
|
- | |||||
| 23 | 318021600 | Panel-control |
|
- | |||||
| 43 | 318164706 | Knob,temp Control |
|
- | |||||
| 45 | 5304513507 | Strain Relief (Replaces: 3201437) |
|
$ 9.10 | |||||
| 46 | 318077411 | Burner Box |
|
- | |||||
| 47 | 5303303991 | Cord-electric Power |
|
$ 96.50 | |||||
| 99 | 5303324192 | Self Nut |
|
$ 5.46 | |||||
| 136 | 5303935029 | Support |
|
$ 61.79 | |||||
| 137 | 5303323138 | Screw,10-24x1/2 |
|
$ 14.13 | |||||
| 183 | 5304410665 | Screw,10-32 X 5/8 |
|
- | |||||
| *37840 | 5303323140 | Screw,ground ,10-32 X 0.375 |
|
- | |||||
| *37841 | 318068140 | Use & Care Guide |
|
- | |||||
| *37842 | 5303311306 | Screw,8-18 X 0.375 |
|
- | |||||
| *37843 | 5304453707 | Screw, 8-32 X 3/8, (6) (Replaces: 5303311333) |
|
Immediately | $ 15.92 | ||||
| *37844 | 5303311532 | Screw, Back |
|
- | |||||
| *37845 | 318174300 | Box & Grate Assy |
|
- |
