SELECT A DIAGRAM

01 - Cover

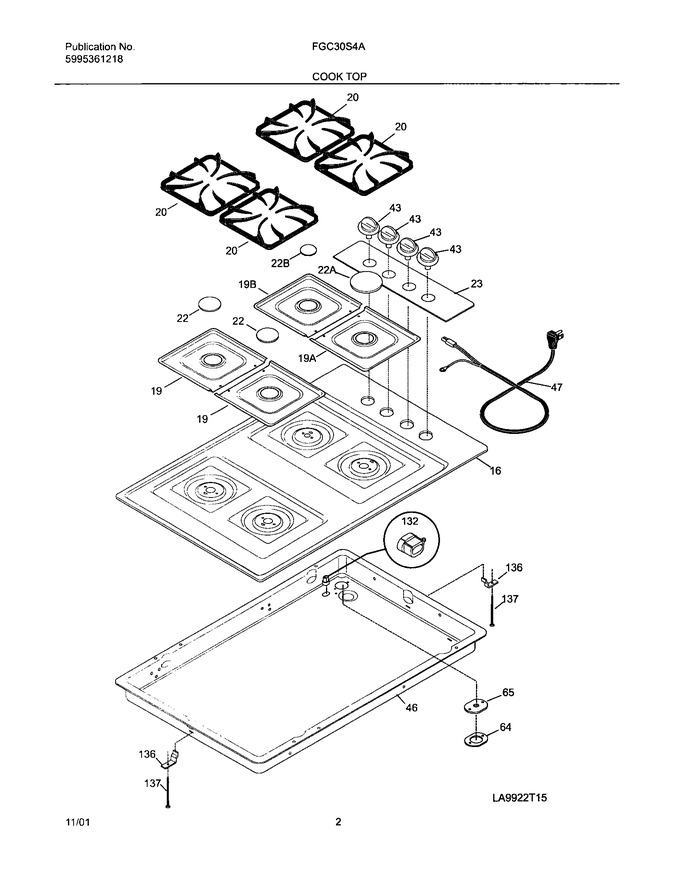

03 - Cooktop


05 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318159145		Panel,main Top ,bisque		Appelez-nous	-
19	318167909		Pan,burner ,bisque ,medium		Appelez-nous	-
22	318076414		Cap,burner ,brown ,medium Lf & Lr		Appelez-nous	-
23	318021615		Panel,overlay ,bisque		Appelez-nous	-
43	318196102		Knob,control ,bisque		Appelez-nous	-
46	318156000		Burner Box		Appelez-nous	-
64	5303304033		Bracket,retainer		Appelez-nous	-
65	5304506478		Seal, Rubber   (Replaces: 5303304032)				$ 11.34
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	5303935029		Support				$ 61.79
137	5303323138		Screw,10-24x1/2				$ 14.13
19A	318167910		Pan,burner ,bisque ,large		Appelez-nous	-
19B	318167911		Pan,burner ,bisque ,small		Appelez-nous	-
22A	318076424		Cap,burner ,brown ,large Rf		Appelez-nous	-
22B	318076404		Cap,burner ,brown ,small Rr		Appelez-nous	-
F20	318179513		Grate,brown ,(4)		Appelez-nous	-
F47	5303303991		Cord-electric Power				$ 96.50
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17

    View Diagram in Separate Window       Print Part List
