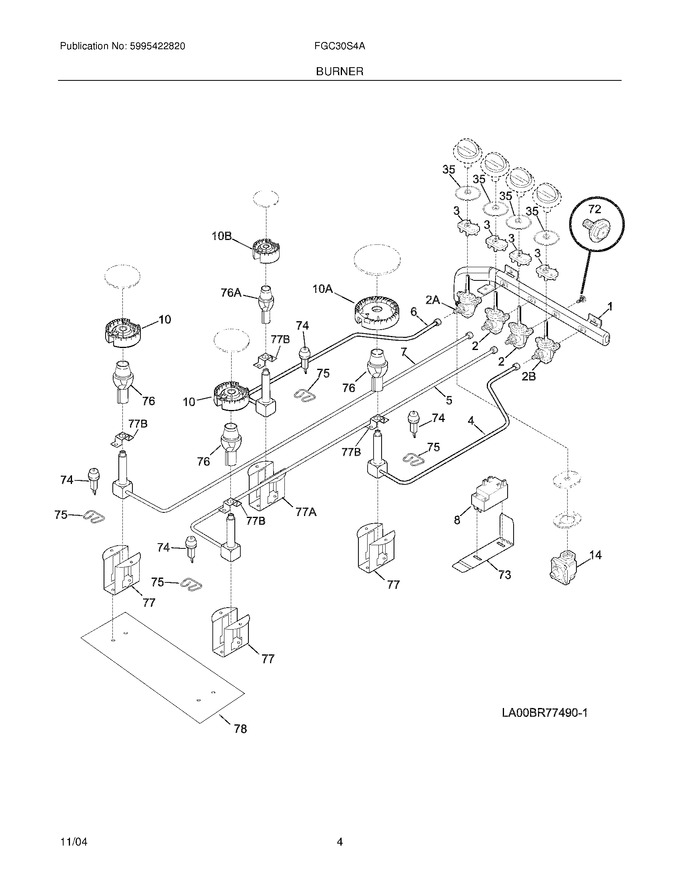

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318177003		Manifold Pipe		Appelez-nous	-
35	318146300		Bushing		Appelez-nous	-
72	5303323141		Screw,valve Mtg ,1/4-20 X 5/16		Appelez-nous	-
73	318024201		Bracket,spark Module				$ 9.08
75	318148800		Clip,electrode				$ 68.57
77	318112010		Bracket,burner Mtg ,medium & Large		Appelez-nous	-
78	318220100		Shield,burner Box		Appelez-nous	-
77A	318112000		Bracket,burner Mtg ,small				$ 51.14
77B	318180900		Bracket,burner Tube				$ 8.56
F10	318148001		Burner,top ,9100 Btu ,medium Lf & Lr				$ 112.88
F10A	318148002		Burner,top ,13000 Btu ,large Rf				$ 144.64
F10B	318148000		Burner,top ,5000 Btu ,small Rr				$ 252.58
F14	5308007974		Regulator-pressure				$ 309.02
F2	5303935042		Valve,top Burner ,2-position ,9100 Btu				$ 175.25
F2A	318087001		Valve,top Burner ,5000 Btu				$ 204.59
F2B	318087040		Valve,top Burner ,13000 Btu				$ 284.34
F3	318232604		Wiring Harness,w/igntr Switch				$ 292.73
F4	318167714		Tube,burner ,rf		Appelez-nous	-
F5	318167700		Tube,burner ,lf				$ 210.05
F6	318167702		Tube,burner ,rr				$ 213.83
F7	318167701		Tube,burner ,lr				$ 233.00
F74	318148700		Ignitor,top Burner				$ 62.19
F76	318167801		Tube,mixing ,medium & Large				$ 98.60
F76A	318167800		Tube,mixing ,small				$ 78.33
F8	5304505695		Module,spark   (Replaces: 316135701)			Immediately	$ 68.16
NI	08011955		Screw,10-24 X 0.375 ,square Drive			Immediately	$ 9.36
NI	318199729		Wiring Harness,ignitor		Appelez-nous	-
NI	318127407		Lp Conversion Kit		Appelez-nous	-
NI	5303311532		Screw,6-32 X 1/4`` ,back		Appelez-nous	-
NI	5304403558		Screw,10-16 X 0.250		Appelez-nous	-
