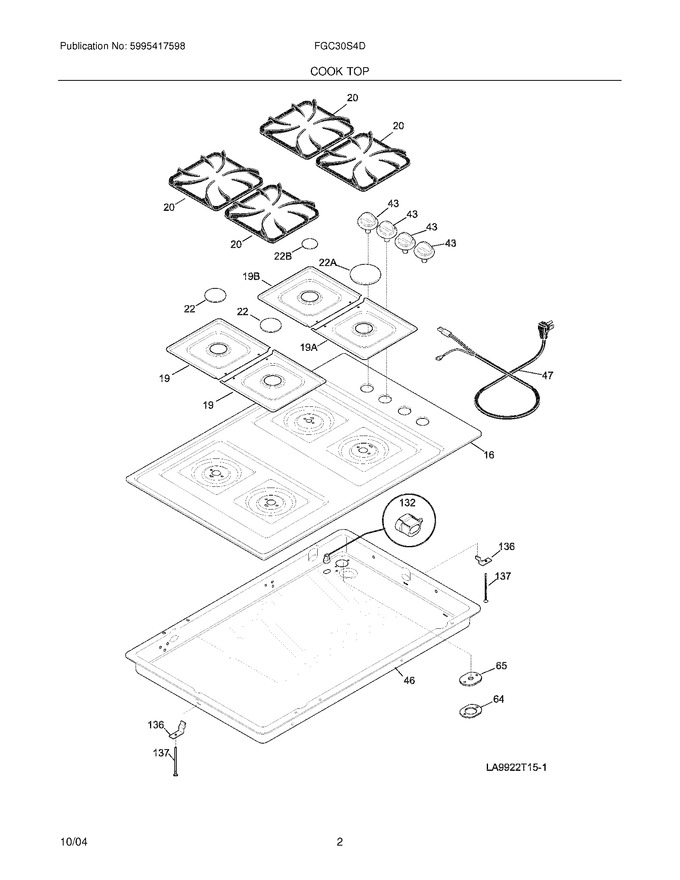

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318191520		Main Top,stainless		Appelez-nous	-
19	318167903		Pan,burner ,medium ,black		Appelez-nous	-
20	318227002		Grate,burner ,black ,(4)		Appelez-nous	-
22	316213500		Cap,burner ,black ,medium Lf & Lr   (Replaces: 318076410)				$ 43.23
43	318196141		Knob,control ,black				$ 106.32
46	318156000		Burner Box		Appelez-nous	-
47	318144002		Cord,service		Appelez-nous	-
64	5303304033		Bracket,retainer		Appelez-nous	-
65	5304506478		Seal, Rubber   (Replaces: 5303304032)				$ 11.34
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	5303935029		Support				$ 61.79
137	5303285443		Screw,lock Bracket ,10-24 X 2.00		Appelez-nous	-
19A	318167904		Pan,burner ,large ,black		Appelez-nous	-
19B	318167905		Pan,burner ,small ,black		Appelez-nous	-
22A	318076420		Cap-burner,black ,large Rf		Appelez-nous	-
22B	318076400		Cap,burner ,black ,small Rr				$ 25.66
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5303307980		Screw,8-32 X 0.437			Immediately	$ 14.18
