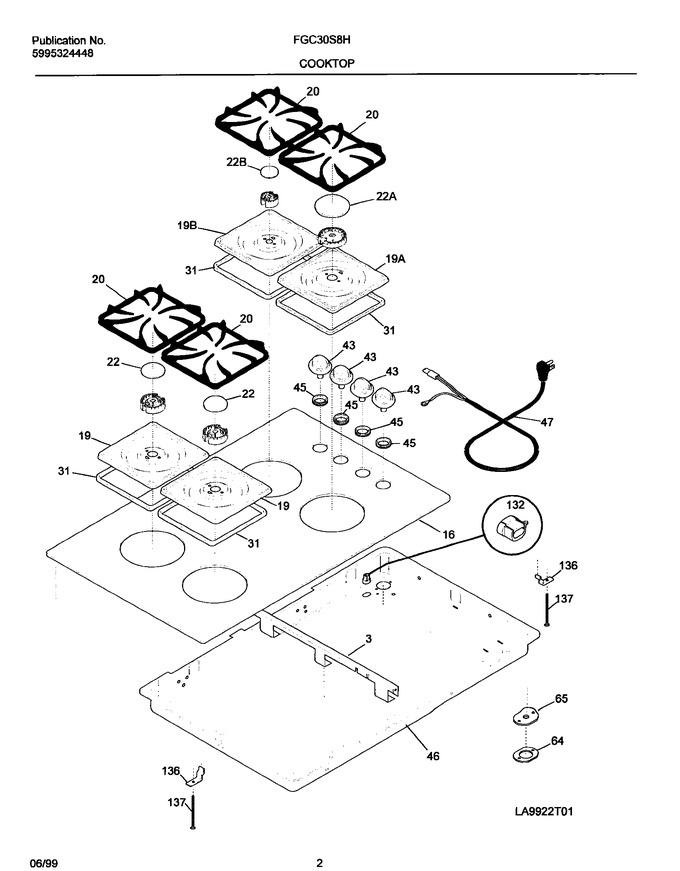

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318171400		Glass Support		Appelez-nous	-
16	318018515		Main Top,almond		Appelez-nous	-
19	318168115		Burner Pan Medium,almond ,mid Lr & Fl		Appelez-nous	-
20	318120106		Grate-grey		Appelez-nous	-
22	318076411		Cap-burner,white ,mid Lf & Lr		Appelez-nous	-
31	318053901		Gasket-vent   (Replaces: 318053900)				$ 33.60
43	318016502		Knob-top Valve		Appelez-nous	-
45	318146200		Bushing		Appelez-nous	-
46	5303307897		Burner Box		Appelez-nous	-
47	5303303991		Cord-electric Power				$ 96.50
64	5303304033		Retainer/bracket		Appelez-nous	-
65	5304506478		Seal, Rubber   (Replaces: 5303304032)				$ 11.34
132	5304513507		Bushing - Snap   (Replaces: 3201437)				$ 9.10
136	5303935029		Fixation Support				$ 61.79
137	5303323138		Screw, 10-24 X 2 1/2				$ 14.13
19A	318168125		Burner Pan Large,almond ,large Rf		Appelez-nous	-
19B	318168105		Burner Pan Small White,almond ,small Rr		Appelez-nous	-
22A	318076421		Cap,burner ,grey ,large Rf				$ 147.70
22B	318076401		Cap-burner,grey		Appelez-nous	-
NI	5303323140		Screw Ground		Appelez-nous	-
NI	5303311532		Screw		Appelez-nous	-
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
