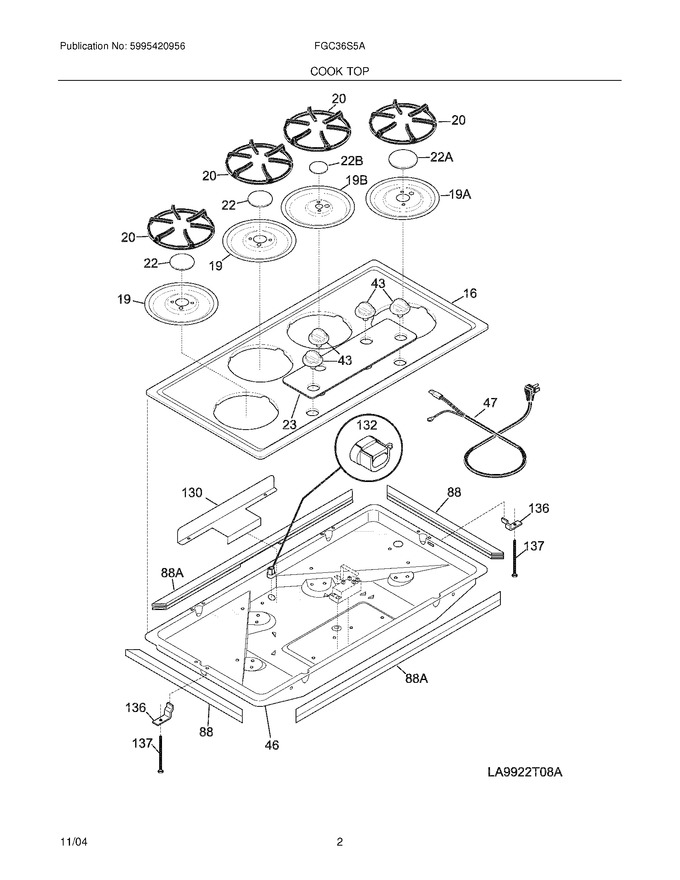

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318065903		Main Top,black		Appelez-nous	-
19	318168014		Pan,burner ,medium ,black		Appelez-nous	-
22	316213500		Cap,burner ,black ,medium Lf & Lr   (Replaces: 318076410)				$ 43.23
23	993901401		Panel,control ,black   (Replaces: 318242401)		Appelez-nous	-
43	318196149		Knob,control ,black		Appelez-nous	-
46	318077130		Burner Box		Appelez-nous	-
47	318144002		Cord,service		Appelez-nous	-
88	318052804		Gasket,cooktop		Appelez-nous	-
130	318125003		Shield,burner Box		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	5303935029		Support				$ 61.79
137	5303323138		Screw,10-24x1/2				$ 14.13
19A	318168024		Pan,burner ,large ,black		Appelez-nous	-
19B	318168004		Pan,burner ,small ,black		Appelez-nous	-
22A	318076420		Cap-burner,black ,large Rf		Appelez-nous	-
22B	318076400		Cap,burner ,black ,small Rr				$ 25.66
88A	318052803		Gasket,cooktop		Appelez-nous	-
F20	318226800		Grate,black ,(4)		Appelez-nous	-
NI	5303311532		Screw,6-32 X 1/4`` ,back		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	5304403558		Screw,10-16 X 0.250		Appelez-nous	-
