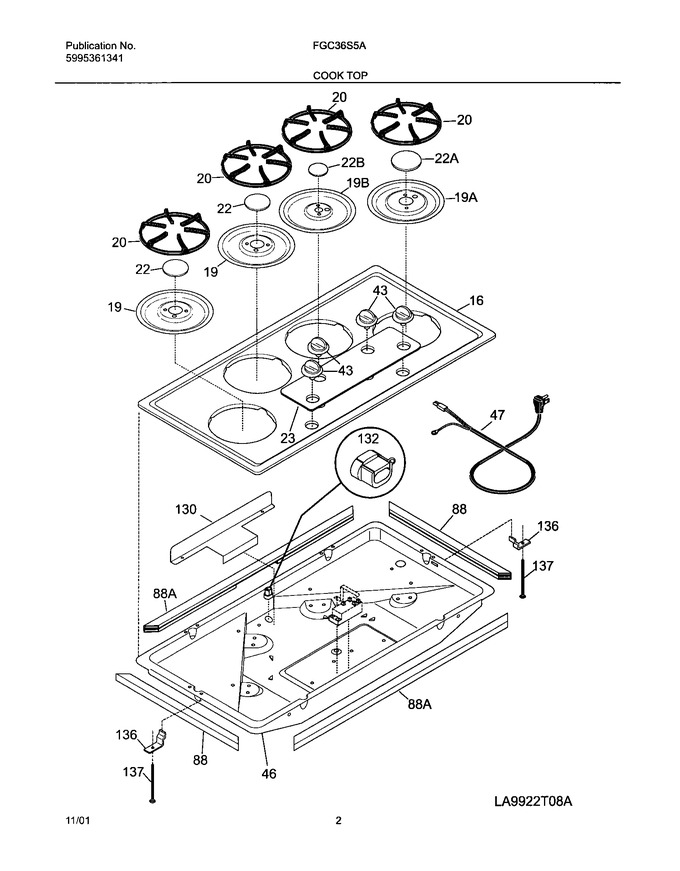

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318065901		Main Top, White		Appelez-nous	-
19	318168014		Pan,burner ,medium ,black		Appelez-nous	-
20	318120005		Grate,black		Appelez-nous	-
22	316213500		Cap,burner ,black ,medium Lf & Lr   (Replaces: 318076410)				$ 43.23
23	318021703		Panel,control		Appelez-nous	-
43	318196121		Knob,control ,black		Appelez-nous	-
46	318077130		Burner Box		Appelez-nous	-
88	318052804		Gasket,cooktop		Appelez-nous	-
130	318125001		Shield,burner Box		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	5303935029		Support				$ 61.79
137	5303323138		Screw,10-24x1/2				$ 14.13
19A	318168024		Pan,burner ,large ,black		Appelez-nous	-
19B	318168004		Pan,burner ,small ,black		Appelez-nous	-
22A	318076420		Cap-burner,black ,large Rf		Appelez-nous	-
22B	318076400		Cap,burner ,black ,small Rr				$ 25.66
88A	318052803		Gasket,cooktop		Appelez-nous	-
F47	5303303991		Cord-electric Power				$ 96.50
NI	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
NI	5303311532		Screw,6-32 X 1/4`` ,back		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	5304403558		Screw,10-16 X 0.250		Appelez-nous	-
