SELECT A DIAGRAM

01 - Cover

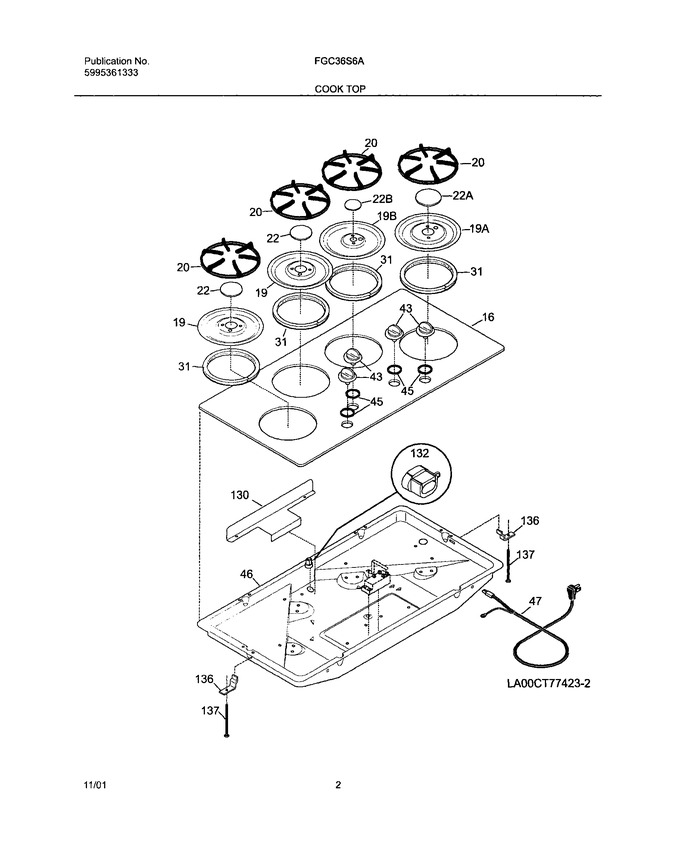

03 - Cooktop


05 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318019412		Glass Top,white		Appelez-nous	-
19	318168016		Pan,burner ,medium ,white		Appelez-nous	-
20	318120006		Grate,grey		Appelez-nous	-
22	318076411		Cap,burner ,grey ,medium Lf & Lr		Appelez-nous	-
31	318052910		Gasket,burner Pan ,(4)		Appelez-nous	-
43	318196120		Knob,control ,white		Appelez-nous	-
45	318146200		Bushing		Appelez-nous	-
46	318077130		Burner Box		Appelez-nous	-
130	318125001		Shield,burner Box		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	5303935029		Support				$ 61.79
137	5303323138		Screw,10-24x1/2				$ 14.13
19A	318168026		Pan,burner ,large ,white		Appelez-nous	-
19B	318168006		Pan,burner ,small ,white		Appelez-nous	-
22A	318076421		Cap,burner ,grey ,large Rf				$ 147.70
22B	318076401		Cap,burner ,grey ,small Rr		Appelez-nous	-
F47	5303303991		Cord-electric Power				$ 96.50
NI	5304403558		Screw,10-16 X 0.250		Appelez-nous	-
NI	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
NI	5303311306		Screw,8-18 X 0.375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
