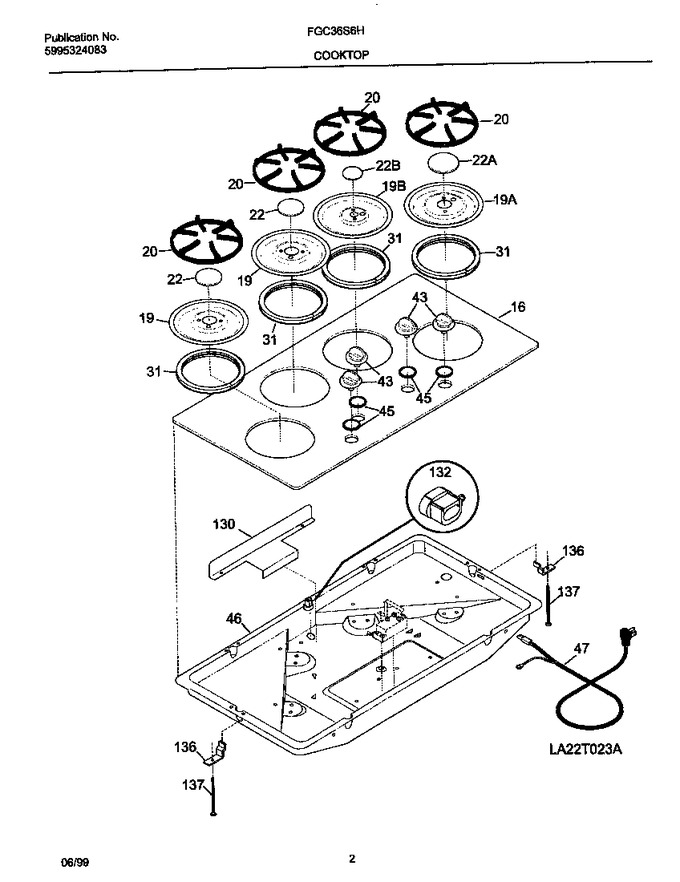

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318079404		Main Top,black		Appelez-nous	-
19	318168004		Small Pan Burner,black ,rr		Appelez-nous	-
19	318168024		Large Pan Burner,black ,rf		Appelez-nous	-
19	318168014		Medium Pan Burner,black ,lr & Lf		Appelez-nous	-
20	318120003		Grate		Appelez-nous	-
22	316213500		Cap-burner,black ,mid Lf &cr   (Replaces: 318076410)				$ 43.23
22	318076420		Cap-burner,black ,large Rf		Appelez-nous	-
22	318076400		Cap-burner,black ,small Rr & Lr				$ 25.66
31	318052900		Gasket-pan,(4)		Appelez-nous	-
43	318016506		Knob-top Valve, Black, (4)		Appelez-nous	-
45	318146200		Bushing		Appelez-nous	-
46	318077130		Burner Box		Appelez-nous	-
47	5303303991		Cord-electric Power				$ 96.50
130	318125001		Shield,burner Box		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	5303935029		Support				$ 61.79
137	5303323138		Screw,10-24x1/2				$ 14.13
*41480	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*41481	5303311306		Screw,8-18 X 0.375		Appelez-nous	-
*41482	5304403558		Screw 10-16 X 1/4,10-16 X 1/4		Appelez-nous	-
*41483	318052106		Harness Wiring		Appelez-nous	-
