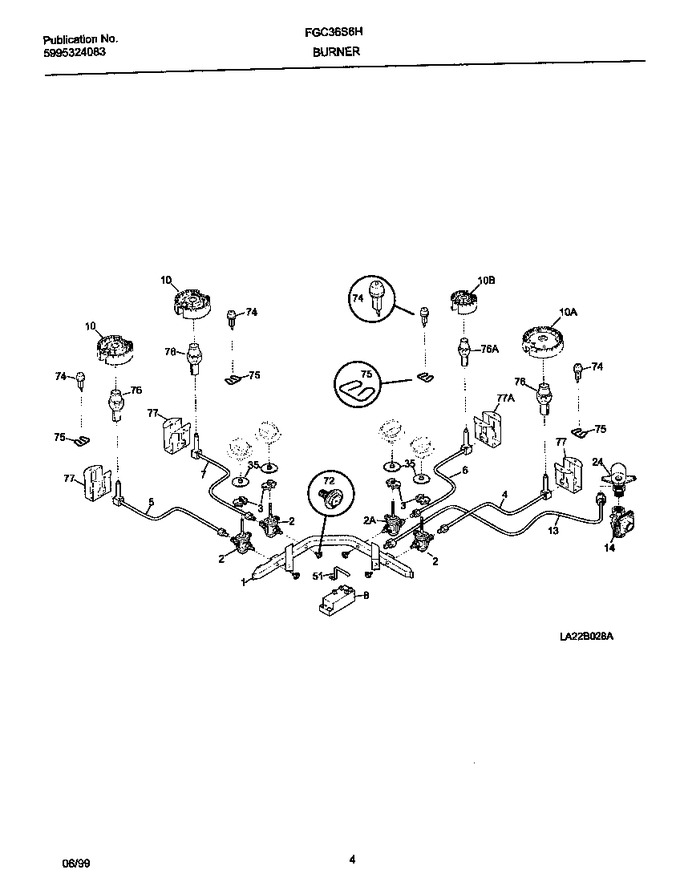

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318177100		Manifold Pipe		Appelez-nous	-
2	318087001		Valve-top Burner				$ 204.59
2	5303935042		Valve-top Burner, 2-position, (3)				$ 175.25
3	316032002		Switch-ignitor, (4)				$ 63.46
4	318167711		Tube-burner,fr		Appelez-nous	-
5	318167708		Tube-burner,fl		Appelez-nous	-
6	318167709		Tube,burner ,br		Appelez-nous	-
7	318167710		Tube,burner ,bl		Appelez-nous	-
8	5304505695		Spark Module   (Replaces: 5303280394)			Immediately	$ 68.16
10	318148000		Burner-top Small,5000btu ,rr				$ 252.58
10	318148002		Burner-top,large ,13000 Btu ,large Rf				$ 144.64
10	318148001		Burner-top Mid,9100btu ,lf & Lr				$ 112.88
13	318054504		Connector, Manifold Pipe		Appelez-nous	-
14	5308007974		Regulator-pressure				$ 309.02
24	318054000		Elbow Fitting		Appelez-nous	-
35	5303307978		Bushing-insulation		Appelez-nous	-
51	318024200		Bracket, Spark Module		Appelez-nous	-
72	5303323141		Screw Valve <1/4-20x 5/16		Appelez-nous	-
74	318148700		Ignitor Gourmet Assy				$ 62.19
75	318148800		Clip,electrode				$ 68.57
76	318167801		Mid & Large Mixing Tube,mid & Large				$ 98.60
76	318167800		Small Mixing Tube,small Rr & Lr				$ 78.33
77	318112000		Bracket-burner Mtg				$ 51.14
77	318112010		Bracket-burner Mtg,mid & Large		Appelez-nous	-
*41484	08011955		Screw,10-24 X 3/8 ,square Drive			Immediately	$ 9.36
*41485	5303311306		Screw,8-18 X 0.375		Appelez-nous	-
*41486	318127410		Lp Conversion Kit		Appelez-nous	-
*41487	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
