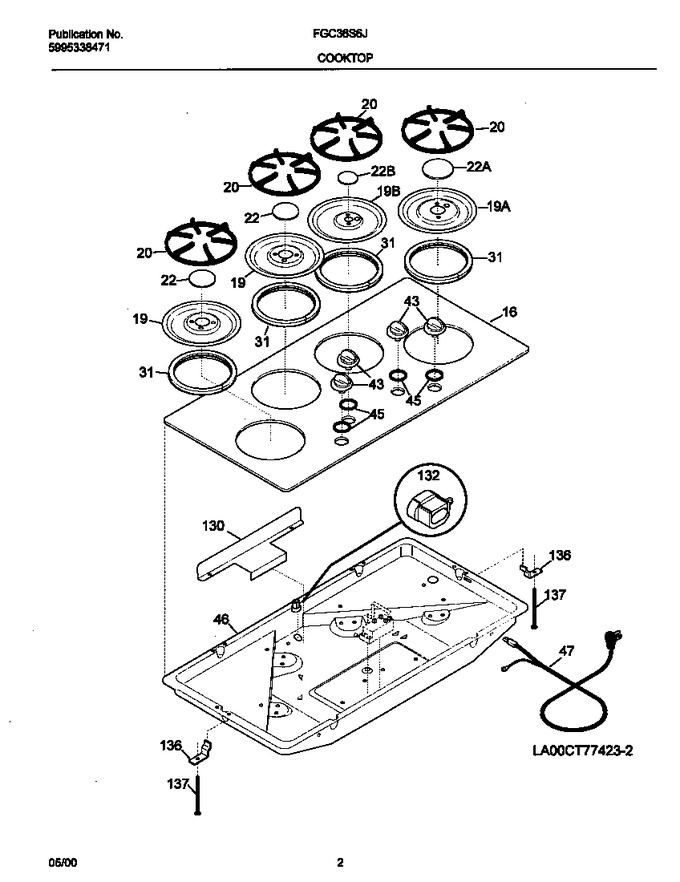

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318079410		Glass & Tape Assy,glass ,white		Appelez-nous	-
19	318168006		Small Pan Burner,white ,rr		Appelez-nous	-
19	318168026		Large Pan Burner,white ,rf		Appelez-nous	-
19	318168016		Medium Pan Burner,white ,lr & Lf		Appelez-nous	-
20	318120004		Grate		Appelez-nous	-
22	318076401		Cap-burner,white ,small Rr		Appelez-nous	-
22	318076411		Cap-burner,white ,mid Lf & Lr		Appelez-nous	-
22	318076421		Cap-burner,white ,large Rf				$ 147.70
31	318052910		Gasket-pan,(4)		Appelez-nous	-
43	318164723		Knob,temp Control		Appelez-nous	-
45	318146200		Bushing		Appelez-nous	-
46	318077130		Burner Box		Appelez-nous	-
47	5303303991		Cord-electric Power				$ 96.50
130	318125001		Shield,burner Box		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	5303935029		Support				$ 61.79
137	5303323138		Screw,10-24x1/2				$ 14.13
*61360	318047105		Wiring Diagram		Appelez-nous	-
*61361	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*61362	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*61363	5303311306		Screw,8-18 X 0.375		Appelez-nous	-
*61364	5303311532		Screw, Back		Appelez-nous	-
*61365	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
*61366	5304403558		Screw,10-16 X 0.250		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
