SELECT A DIAGRAM
02 - Cooktop Parts
03 - Burner Parts
New Model Search:

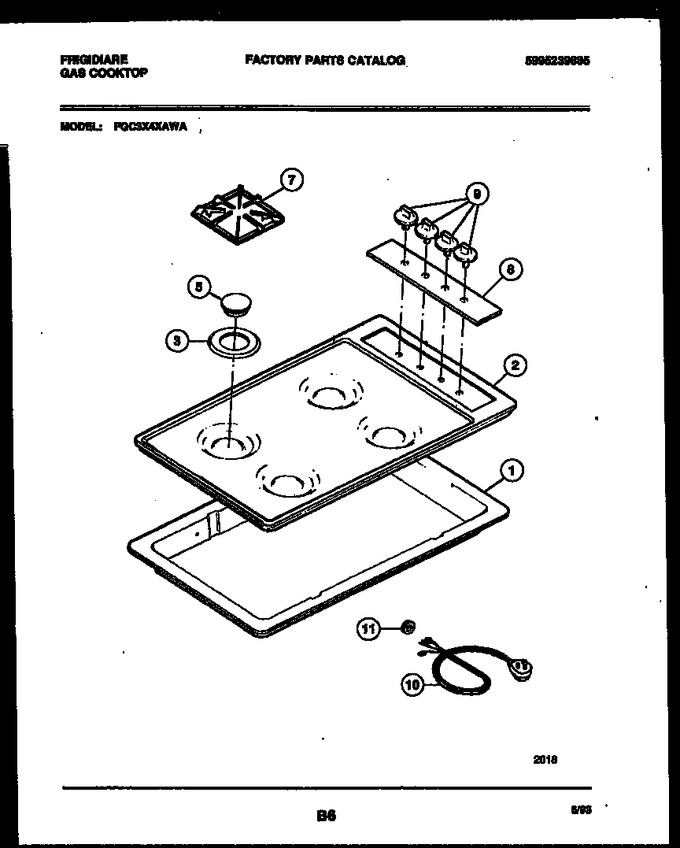

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303209008 | Burner Box |
|
- | |||||
| 2 | 5303300057 | Panel-main Top-almond |
|
- | |||||
| 3 | 5303209009 | Trim-ring-small (4) |
|
- | |||||
| 5 | 316011001 | Cap-burner-small (4) |
|
- | |||||
| 7 | 316025400 | Grate, Black, (4) |
|
- | |||||
| 8 | 5303300059 | Panel-control |
|
- | |||||
| 9 | 5303299475 | Knob-control |
|
- | |||||
| 10 | 3205202 | Cord - Power |
|
- | |||||
| 11 | 5304513507 | Bushing - Snap (Replaces: 3201437) |
|
$ 9.10 |
