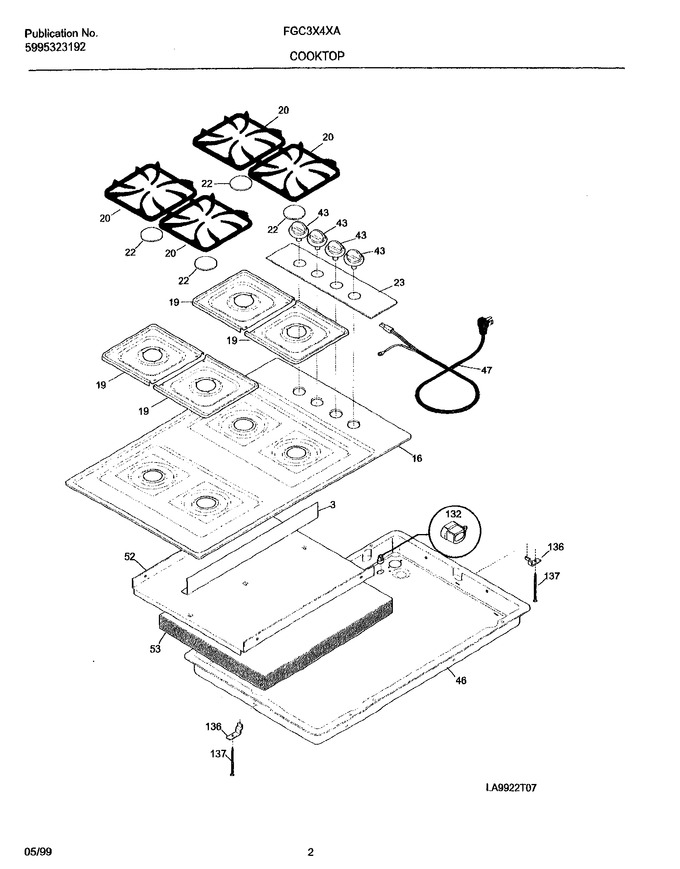

03 - Cooktop


05 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303304031		Support Maintop		Appelez-nous	-
16	5303300057		Main Top, Almond		Appelez-nous	-
19	316011401		Pan-burner, Black ,(4)				$ 20.58
20	318179501		Grate		Appelez-nous	-
22	316122100		Cap-burner Black Small		Appelez-nous	-
23	5303300059		Panel-control		Appelez-nous	-
43	5303317102		Knob-control, Black		Appelez-nous	-
46	5303303989		Burner Box		Appelez-nous	-
47	5303303991		Cord-electric Power				$ 96.50
52	5303209024		Shield-heat		Appelez-nous	-
53	5303209025		Insulation		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	5303935029		Support				$ 61.79
137	5303323138		Screw, 10-24 X 2 1/2				$ 14.13
NI	5303323140		Screw, 10-32 X 3/8		Appelez-nous	-
