SELECT A DIAGRAM

Diagram for 01 - Cover
01 - Cover

Diagram for 02 - Cooktop Parts
02 - Cooktop Parts

Diagram for 03 - Burner Parts
03 - Burner Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
3 5303304031 Support Maintop Appelez-nous -
16 5303300056 Main Top, White Appelez-nous -
19 316011401 Pan-burner Special Order $ 20.58

20 316025400 Grate, (4) Appelez-nous -
22 316011014 Cap-burner, Matte Black, (3), Small Appelez-nous -
23 5303300059 Panel-control, Metal Appelez-nous -
43 5303317102 Knob-control, Black Appelez-nous -
45 5304513507 Bushing - Snap   (Replaces: 3201437) Special Order $ 9.10

46 5303303989 Burner Box Appelez-nous -
47 5303303991 Cord-electric Power Special Order $ 96.50


    View Diagram in Separate Window     Print Icon   Print Part List

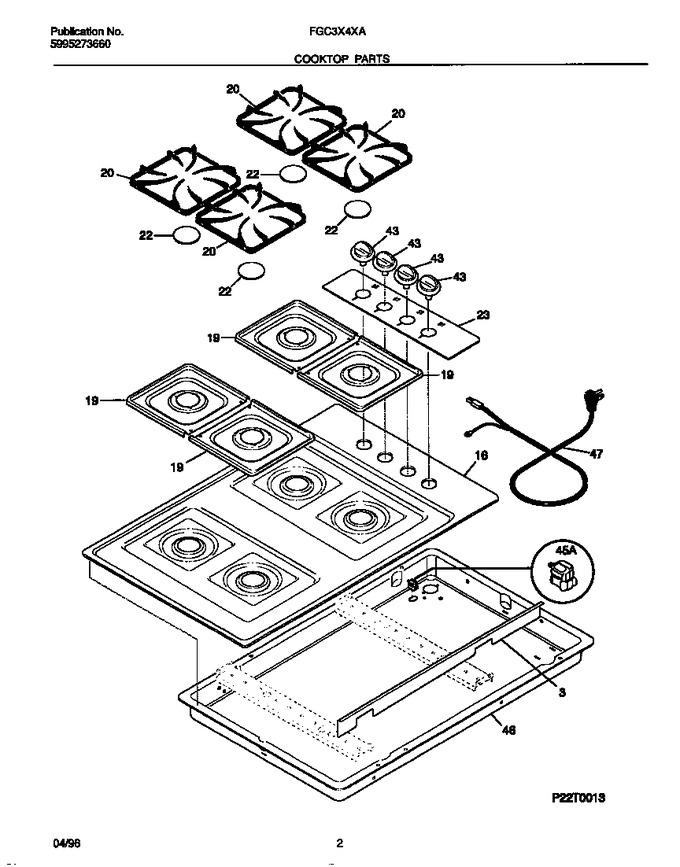

Diagram for FGC3X4XAW2
