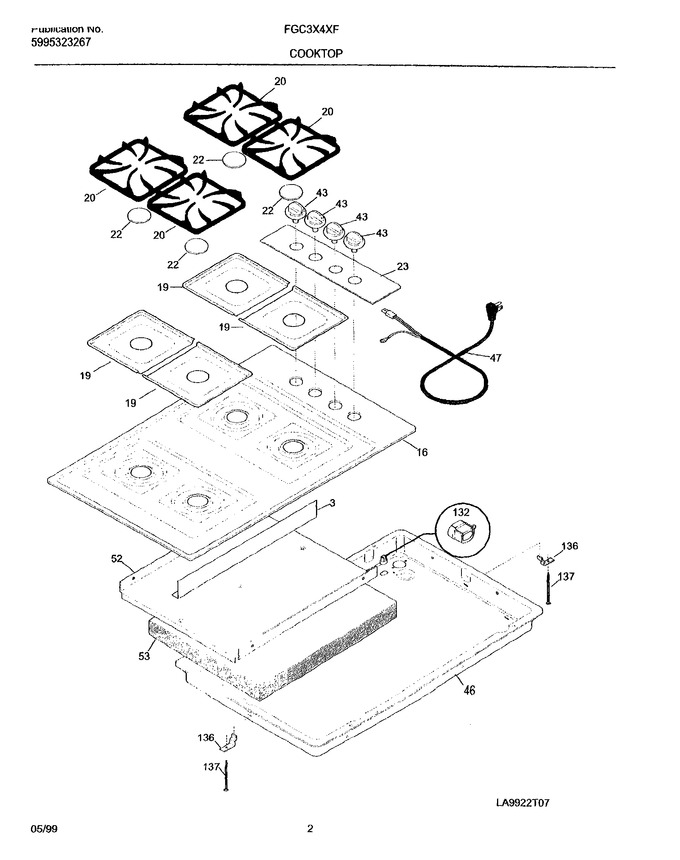

03 - Cooktop


05 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303304031		Support Maintop		Appelez-nous	-
16	5303300056		Main Top, White		Appelez-nous	-
19	316011409		Pan Burner, Black				$ 153.83
20	318179500		Grate, Black		Appelez-nous	-
22	316122101		Cap Burner, Glossy				$ 34.85
23	318021603		Panel-control		Appelez-nous	-
43	318016510		Knob Control, Black		Appelez-nous	-
46	5303303989		Burner Box		Appelez-nous	-
47	5303303991		Cord-electric Power				$ 96.50
52	5303209024		Shield-heat		Appelez-nous	-
53	5303209025		Insulation		Appelez-nous	-
132	5304513507		Bushing - Snap   (Replaces: 3201437)				$ 9.10
136	5303935029		Support				$ 61.79
137	5303323138		Screw, 10-24 X 2 1/2				$ 14.13
NI	5303323140		Screw Ground		Appelez-nous	-
