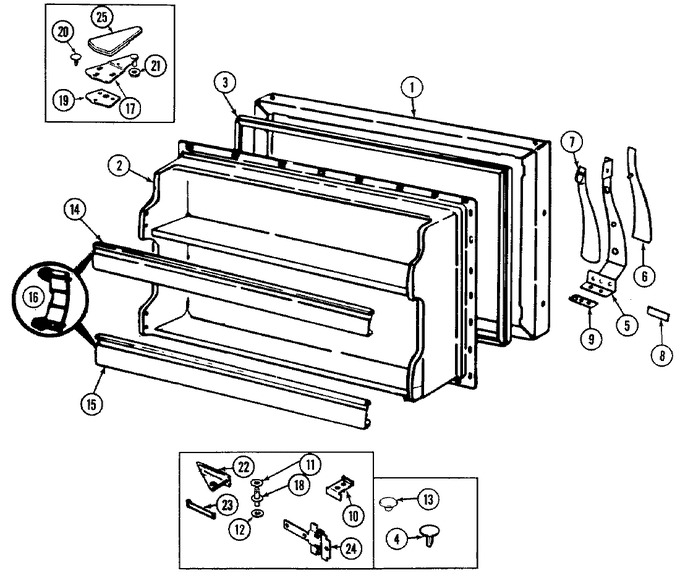

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72345-1-AM		Panel, Frz. Door (alm)	11	Appelez-nous	-
2	65275-5		Screw	11	Appelez-nous	-
2	69470-1		Liner, Frz. Door	11	Appelez-nous	-
3	70025-5		Gasket, Frz. Door (wht)	11			$ 142.50
4	69480-4		Plug Button (alm)	11	Appelez-nous	-
5	69300-1		Handle, Door	11	Appelez-nous	-
5	65275-57		Screw	11	Appelez-nous	-
6	68959-2		Insert	11	Appelez-nous	-
7	60445-4		Insert, Handle (back)	11	Appelez-nous	-
8	66982-34		Insert, Nameplate	11	Appelez-nous	-
8	65275-53		Screw	11	Appelez-nous	-
9	69301-1		Shim, Handle	11	Appelez-nous	-
10	65275-48		Screw	11	Appelez-nous	-
10	69256-2		Stop, Door	11	Appelez-nous	-
11	67483-6		Washer	11	Appelez-nous	-
12	54233-7		Washer	11	Appelez-nous	-
13	67634-3		Plug Button, Hinge Cup (alm)	11	Appelez-nous	-
14	WP61003045		Trim, Door Shelf   (Replaces: 65151-336)	11			$ 129.55
15	WP61003045		Trim, Door Shelf   (Replaces: 65151-364)	11			$ 129.55
16	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)	11			$ 9.39
17	53709-20		Hinge, Upper	11	Appelez-nous	-
18	69517-1		Pin, Center Hinge	11	Appelez-nous	-
19	65031-1		Shim, Upper Hinge	11	Appelez-nous	-
20	56144-9		Plug Button, Hinge Screw (alm)	11	Appelez-nous	-
21	WP3-24838-048		Screw   (Replaces: 65275-52)	11			$ 7.00
21	54233-2		Washer	11	Appelez-nous	-
22	65275-62		Screw	11	Appelez-nous	-
22	69514-2		Hinge, Center	11	Appelez-nous	-
23	69515-1		Shim, Center Hinge	11	Appelez-nous	-
24	65275-61		Screw	11	Appelez-nous	-
24	69419-1		Tapping Plate, Center Hinge	11	Appelez-nous	-
