SELECT A DIAGRAM

01 - Cover


02 - Cooktop


03 - Burner

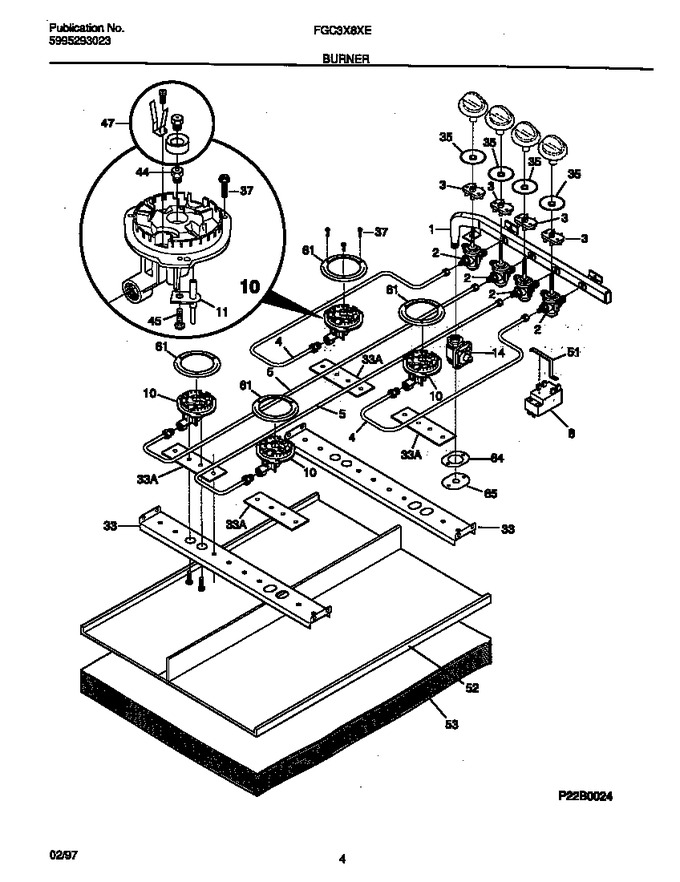

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316032002		Switch-ignitor, (4)				$ 63.46
4	5303305456		Tube-burner, Rf, Rr		Appelez-nous	-
5	5303305455		Tube-burner, Lf, Lr		Appelez-nous	-
8	5304505695		Spark Module   (Replaces: 5303280394)			Immediately	$ 68.16
10	318055001		Burner Assy-top, Sealed, 9000 Btu, (4), Includes, 11, 37		Appelez-nous	-
11	316011200		Ignitor-top Burner   (Replaces: 5303311262)			Immediately	$ 38.68
14	5308007974		Regulator-pressure				$ 309.02
33	318072000		Bracket-burner Mtg, (4)		Appelez-nous	-
33	5303307977		Bracket-burner Mtg, (2)		Appelez-nous	-
35	5303307978		Bushing-insulation		Appelez-nous	-
37	5303320671		Screw, Burner Mtg, Metric, (12)				$ 1.91
44	318088700		Orifice-top Burner, 9000 Btu, (4)		Appelez-nous	-
45	316011100		Screw-igniter Mtg, Self-tapping, M3 X 5.8, (4)				$ 3.41
47	5303302413		Lp, Conversion Kit				$ 133.46
51	318024200		Bracket, Spark Module		Appelez-nous	-
52	5303209024		Shield-heat		Appelez-nous	-
53	5303209025		Insulation		Appelez-nous	-
61	318083900		Trim Ring, Small, Chrome, (4)		Appelez-nous	-
64	5303304033		Retainer/bracket		Appelez-nous	-
65	5304506478		Seal, Rubber   (Replaces: 5303304032)				$ 11.34
*10441	318065000		Restrictor		Appelez-nous	-
*10442	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*10443	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
1A	5303307976		Manifold-pipe		Appelez-nous	-
1B	08011955		Screw, Pan Head, 10-24 X 3/8, Square Drive (not Illustrated)			Immediately	$ 9.36
2A	5303935042		Valve-top Burner, Small, 2-position, (4)				$ 175.25
2B	316048200		Screw-top Valve Mtg, Hex Washer Head, 1/4-20 X 0.31, (4), W/gasket (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
