SELECT A DIAGRAM

01 - Freezer Compartment


02 - Optional Ice Maker Kit

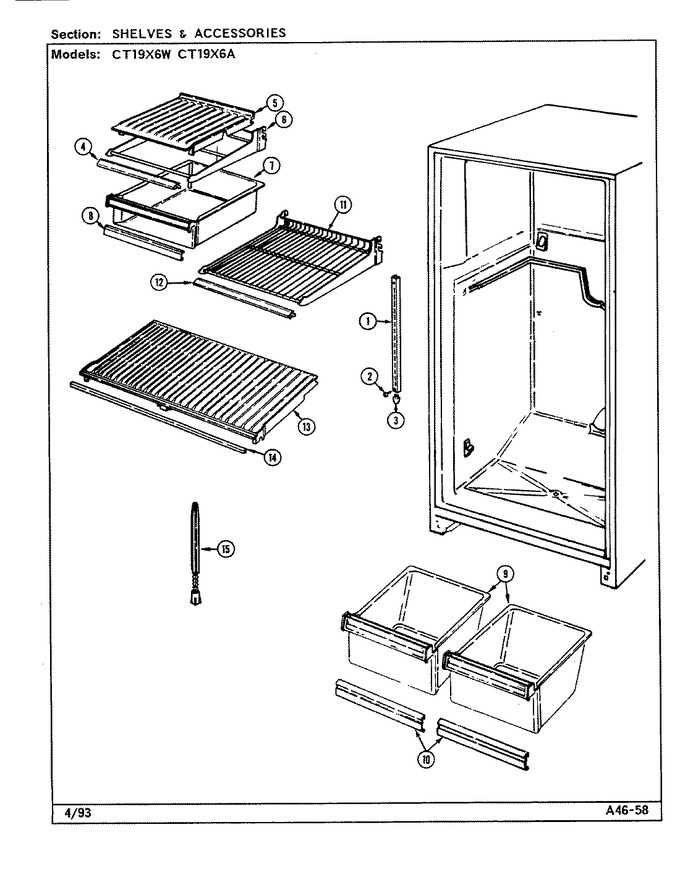

03 - Shelves & Accessories


04 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-8		Rail, Shelf Support (rt)		Appelez-nous	-
1	60096-7		Rail, Shelf Support (lt)		Appelez-nous	-
2	400037-28		Screw		Appelez-nous	-
3	60340-1		End Cap, Center Rail		Appelez-nous	-
4	60414-37		Trim		Appelez-nous	-
5	60075-7		Cover, Meat Pan		Appelez-nous	-
6	60416-16		Shelf		Appelez-nous	-
7	66636-37		Pan, Meat		Appelez-nous	-
8	60132-102		Handle, Meat Keeper		Appelez-nous	-
9	68222-136		Pan, Crisper		Appelez-nous	-
10	60132-133		Trim, Crisper		Appelez-nous	-
11	60417-22		Shelf, Full		Appelez-nous	-
12	60414-37		Trim		Appelez-nous	-
13	60019-6		Shelf, Crisper		Appelez-nous	-
14	60454-11		Trim, Crisper Shelf		Appelez-nous	-
15	12001957		Support, Crisper Shelf   (Replaces: 66105-1)				$ 3.35

    View Diagram in Separate Window       Print Part List
