Diagram # Part Number Description Series Availability Ships Price Add to Cart
3 5303307975 Bracket-support, Main Top Appelez-nous -
16 5303307938 Tape, Foam (not Illustrated) Appelez-nous -
16 318018505 Main Top-glass, Black Appelez-nous -
19 5303307929 Pan-burner, Almond, (4), Small Appelez-nous -
20 5303307926 Grate, Moon Rock Appelez-nous -
21 318050501 Trim Ring, Almond, (4) Appelez-nous -
22 316011004 Cap-burner, Almond, (4), Small Appelez-nous -
31 5303307931 Gasket, Pan Appelez-nous -
43 318016502 Knob-top Valve, (4) Appelez-nous -
45 5304513507 Bushing - Snap   (Replaces: 3201437) Special Order $ 9.10

45 5303307933 Bushing, Top Burner Knob Appelez-nous -
46 5303307897 Burner Box Appelez-nous -
47 5303303991 Cord-electric Power Special Order $ 96.50

73 318057100 Shield-heat, (4), Small Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

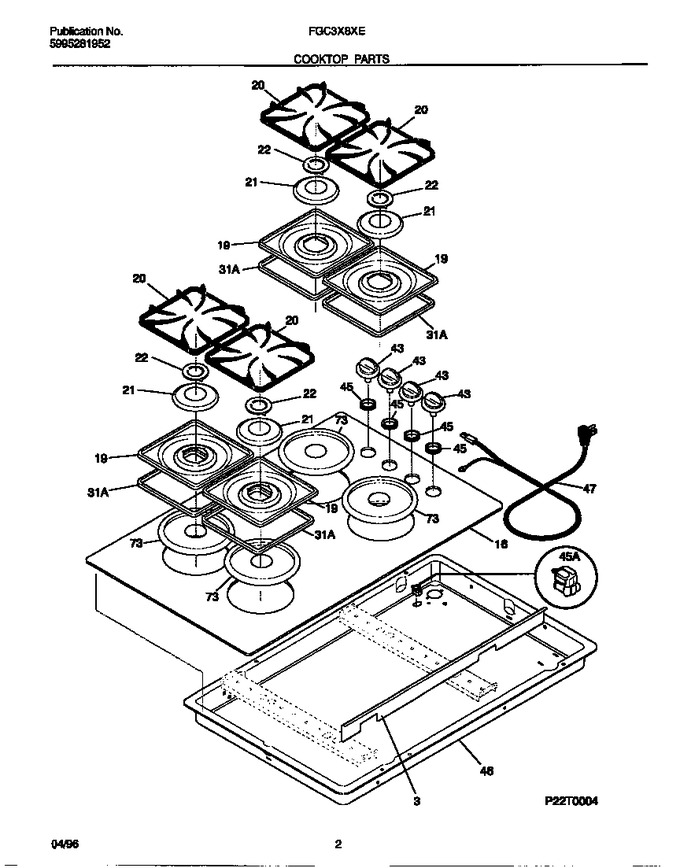

Diagram for FGC3X8XETA
