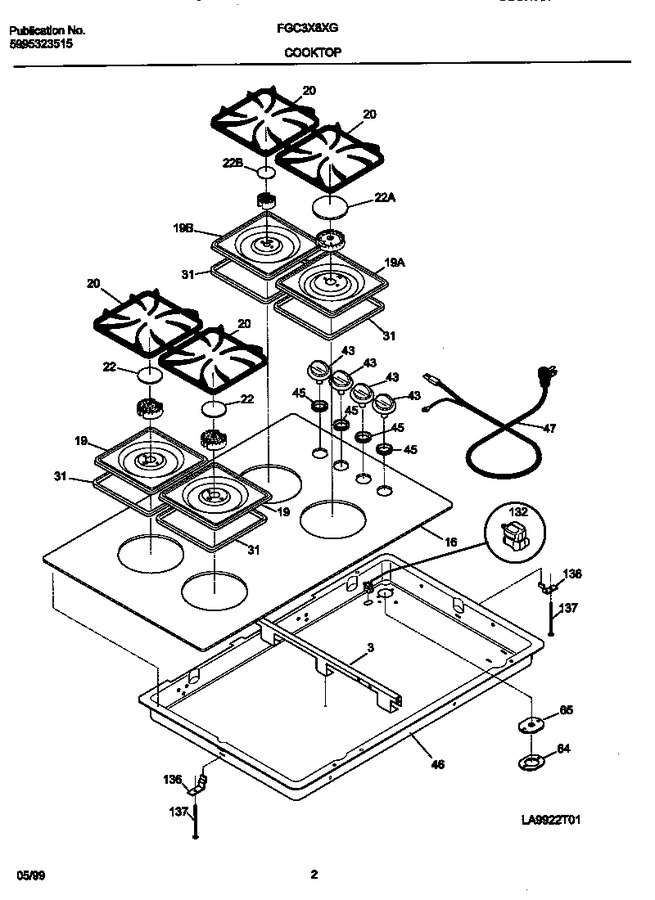

SELECT A DIAGRAM

01 - Cover


02 - Control Panel/top


03 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318171400		Glass Support		Appelez-nous	-
16	318018513		Main Top,white		Appelez-nous	-
19	318168126		Burner Pan Large Black,large Rf				$ 93.40
19	318168106		Burner Pan Small White,small Rr				$ 77.29
19	318168116		Burner Pan Medium White,mid Lr & Fl				$ 97.65
20	318120106		Grate,(4)		Appelez-nous	-
22	318076411		Cap-burner,white ,mid Lf & Lr		Appelez-nous	-
22	318076421		Cap-burner,white ,large Rf				$ 147.70
22	318076401		Cap-burner,white ,small Rr		Appelez-nous	-
31	318053901		Gasket-vent   (Replaces: 318053900)				$ 33.60
43	318016500		Knob, Top Valve, (4)		Appelez-nous	-
45	318146200		Bushing		Appelez-nous	-
46	5303307897		Burner Box		Appelez-nous	-
47	5303303991		Cord-electric Power				$ 96.50
64	5303304033		Retainer/bracket		Appelez-nous	-
65	5304506478		Seal, Rubber   (Replaces: 5303304032)				$ 11.34
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	5303935029		Support				$ 61.79
137	5303323138		Screw,10-24x1/2				$ 14.13
*07840	5304403558		Screw 10-16 X 1/4,10-16 X 1/4		Appelez-nous	-
*07841	318052107		Wire Harness		Appelez-nous	-
*07842	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*07843	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*07844	5303323140		Screw Ground		Appelez-nous	-
*07845	5303311532		Screw, Back		Appelez-nous	-
*07846	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
