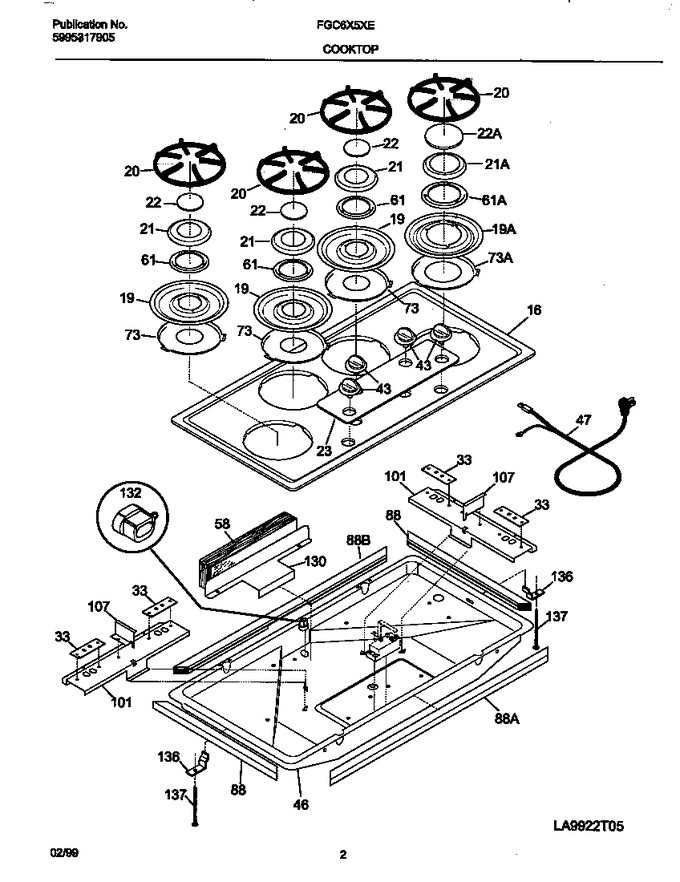

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318065902		Main Top, Almond		Appelez-nous	-
19	318065721		Pan-burner,black		Appelez-nous	-
19	318067501		Pan-burner,black		Appelez-nous	-
20	318120003		Grate-black		Appelez-nous	-
21	5303209009		Trim-ring,small		Appelez-nous	-
21	316011304		Trim-ring,small				$ 97.23
22	316098501		Cap-burner,black ,small		Appelez-nous	-
22	316098505		Cap-burner,black ,large				$ 56.28
23	318021701		Panel-control,black		Appelez-nous	-
33	318072000		Bracket-burner Mtg		Appelez-nous	-
43	318016506		Knob-top Valve Black		Appelez-nous	-
46	318077100		Burner Box		Appelez-nous	-
47	5303303991		Cord-electric Power				$ 96.50
58	5303326117		Insulation-deflector		Appelez-nous	-
61	318083901		Trim Ring		Appelez-nous	-
61	318083900		Trim Ring		Appelez-nous	-
73	318143401		Shield-burner,large		Appelez-nous	-
73	318143400		Shield-burner,small		Appelez-nous	-
88	318052802		Gasket-cooktop		Appelez-nous	-
88	318052801		Gasket-cooktop		Appelez-nous	-
88	318052800		Gasket-cooktop		Appelez-nous	-
101	318090400		Bracket-burner		Appelez-nous	-
107	318113600		Bracket		Appelez-nous	-
130	318125001		Shield,burner Box		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	5303935029		Fixation Support				$ 61.79
137	5303323138		Screw				$ 14.13
*22560	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*22561	5303307980		Screw-back			Immediately	$ 14.18
*22562	5303311306		Screw, 8-18 X 3/8		Appelez-nous	-
*22563	5303323140		Screw, 10-32 X 3/8		Appelez-nous	-
*22564	5303325982		Nut, 10-32		Appelez-nous	-
*22565	5303311532		Screw,6-32 X 1/4		Appelez-nous	-
*22566	5303311306		Screw,8-32 X 3/8		Appelez-nous	-
*22567	318052106		Harness Wiring		Appelez-nous	-
