SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


07 - Unit Compartment & System

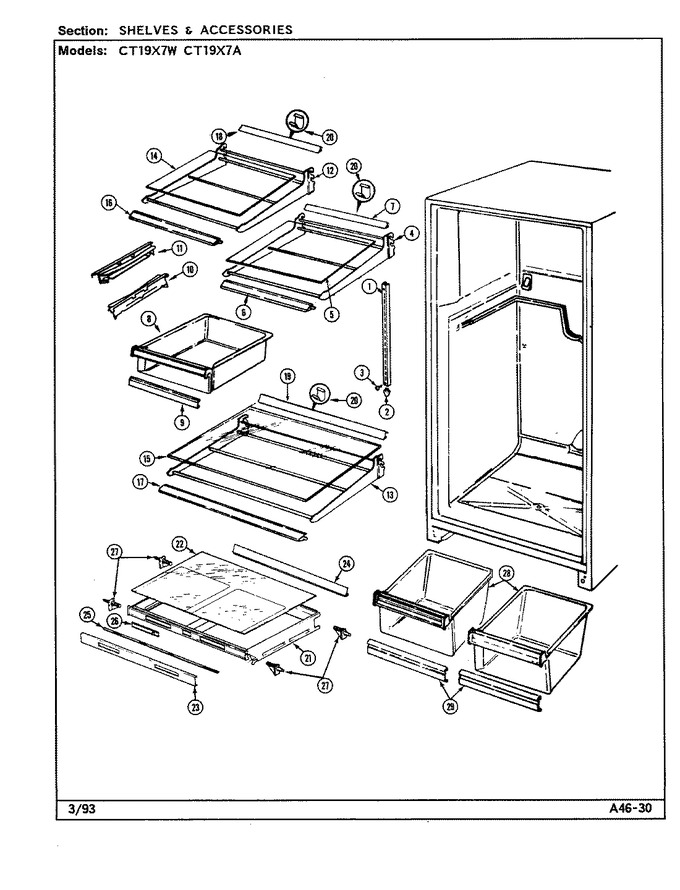

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-7		Rail, Shelf Support (lt)		Appelez-nous	-
1	60096-8		Rail, Shelf Support (rt)		Appelez-nous	-
1	60096-9		Rail, Shelf Support (center)		Appelez-nous	-
2	60340-1		End Cap, Center Rail		Appelez-nous	-
3	400037-28		Screw		Appelez-nous	-
4	60570-36		Frame, Shelf		Appelez-nous	-
5	66604-30		Shelf		Appelez-nous	-
6	60524-6		Trim, Meat Shelf (front)		Appelez-nous	-
7	65276-4		Trim, Meat Shelf (rear)		Appelez-nous	-
8	66636-37		Pan, Meat		Appelez-nous	-
9	60132-102		Handle, Meat Keeper		Appelez-nous	-
10	66814-1		Rail, Meat Pan (rt)		Appelez-nous	-
11	66813-1		Rail, Meat Pan (lt)		Appelez-nous	-
12	60570-36		Frame, Shelf		Appelez-nous	-
13	60570-45		Frame, Shelf		Appelez-nous	-
14	66604-23		Glass, Cantilever Split Shelf		Appelez-nous	-
15	66604-22		Glass, Cantilever Shelf		Appelez-nous	-
16	60524-6		Trim, Meat Shelf (front)		Appelez-nous	-
17	60524-28		Trim,shelf (full Front)		Appelez-nous	-
18	65276-4		Trim, Meat Shelf (rear)		Appelez-nous	-
19	65276-21		Trim, Shelf (full Rear)		Appelez-nous	-
20	66333-1		Clip, Shelf Trim		Appelez-nous	-
21	68735-1		Shelf, Crisper		Appelez-nous	-
22	68743-13		Shelf, Crisper		Appelez-nous	-
23	68744-2		Trim		Appelez-nous	-
24	68798-1		Trim, Crisper Shelf (rear)		Appelez-nous	-
25	68797-1		Seal		Appelez-nous	-
26	68742-1		Slide, Control		Appelez-nous	-
27	68836-1		Stud, Crisper Support		Appelez-nous	-
28	68222-136		Pan, Crisper		Appelez-nous	-
29	60132-106		Handle		Appelez-nous	-
