03 - Backguard

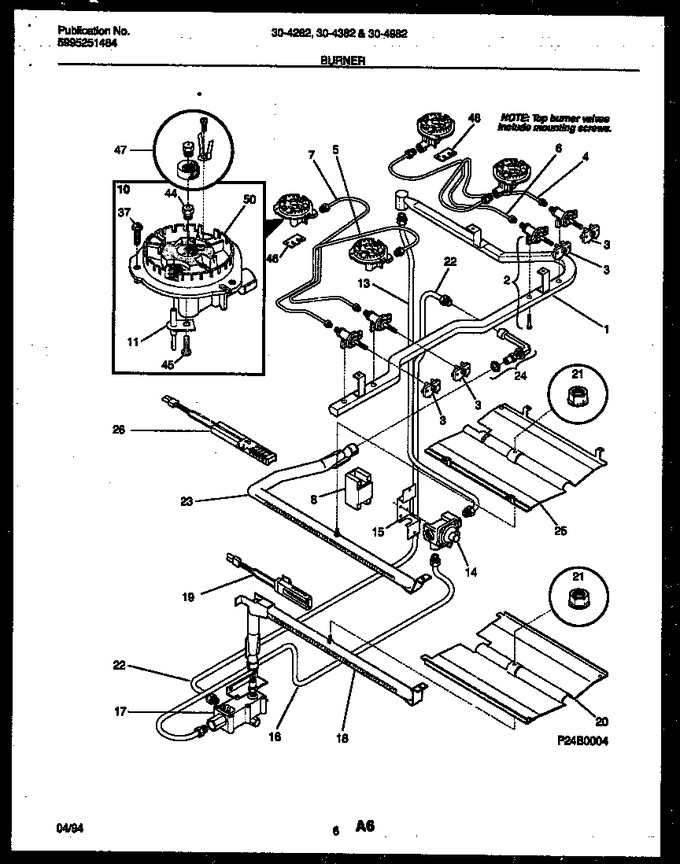

04 - Burner, Manifold And Gas Control
05 - Body Parts
06 - Body Parts
07 - Cooktop And Drawer Parts
08 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316066201 | Manifold Pipe |
|
$ 65.47 | |||||
| 2 | 316020400 | Valve-top Burner, (4), With Mtg Screws |
|
$ 117.44 | |||||
| 3 | 316032000 | Switch-igniter, (4) |
|
$ 58.70 | |||||
| 4 | 316059600 | Tube-burner, Rf |
|
- | |||||
| 5 | 316059613 | Tube-burner, Lf (Replaces: 316059601) |
|
$ 87.16 | |||||
| 6 | 316059602 | Tube-burner, Rr |
|
- | |||||
| 7 | 316059603 | Tube-burner, Lr |
|
- | |||||
| 8 | 5304505695 | Spark Module (Replaces: 5303280394) |
|
Immediately | $ 68.16 | ||||
| 10 | 5303935025 | Burner Assy-top, Sealed, (4), Includes, 11, 37, 44, 45, |
|
- | |||||
| 11 | 316011200 | Ignitor-top Burner, W/mtg Bracket |
|
Immediately | $ 38.68 | ||||
| 13 | 316065005 | Tube, Aluminum, Rgltr To Manf, With Fittings |
|
$ 91.51 | |||||
| 14 | 316054801 | Regulator-pressure |
|
- | |||||
| 15 | 08067934 | Bracket-regulator |
|
- | |||||
| 16 | 316065003 | Tube-valve To Rgltr, 3/8 |
|
$ 126.42 | |||||
| 17 | 5303208499 | Valve-safety-dual |
|
Immediately | $ 559.67 | ||||
| 18 | 3131290 | Burner-oven |
|
- | |||||
| 19 | 5303935066 | Igniter-oven (Replaces: 5303131300) |
|
Immediately | $ 59.58 | ||||
| 20 | 3131284 | Baffle-oven Burner |
|
$ 155.77 | |||||
| 21 | 154079601 | Nut,hex Head Sems (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 22 | 316065002 | Tube-valve To Mixer |
|
$ 80.90 | |||||
| 23 | 08067935 | Burner-broiler |
|
$ 142.59 | |||||
| 24 | 5303208640 | Mixer Elbow |
|
- | |||||
| 25 | 5303210379 | Baffle-broiler |
|
$ 175.88 | |||||
| 26 | 5303935068 | Ignitor-broiler (Replaces: 5308067970) |
|
$ 166.55 | |||||
| 37 | 5303281650 | Screw-burner Mtg, Hex Washer Head, M 3 X 10 |
|
- | |||||
| 44 | 5303210090 | Orifice-top Burner, (4) |
|
$ 54.18 | |||||
| 45 | 316011100 | Screw-igniter Mtg, Self-tapping, M3 X 5.8, (4) |
|
$ 3.41 | |||||
| 46 | 5303269491 | Plate-burner Tube |
|
- | |||||
| 47 | 5303286386 | Lp-conversion Kit |
|
$ 143.29 | |||||
| 50 | 5303935026 | Burner-top, (4), Includes 37 |
|
- | |||||
| 3B | 5303935040 | Switch Harness Terminal Kit |
|
$ 49.67 | |||||
| 8A | 5303289034 | Harness-wiring, Module/igniter (non-illustrated) |
|
$ 188.84 |
