SELECT A DIAGRAM

01 - Cover

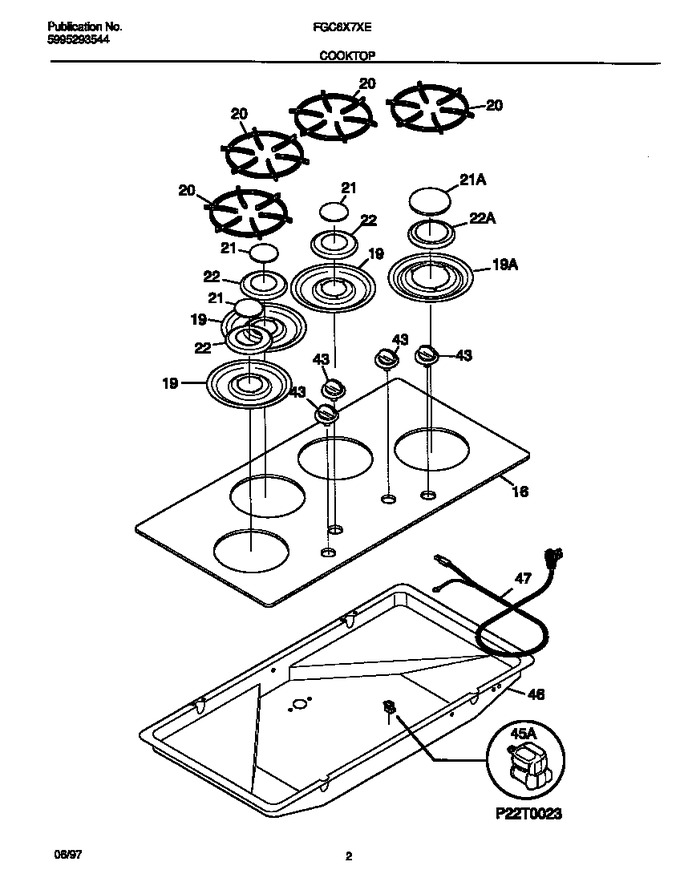

02 - Cooktop


03 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318079400		Main Top, White		Appelez-nous	-
19	318067503		Pan-burner, Small, (3)		Appelez-nous	-
19	318052900		Gasket-pan, (4) (not Illustrated)		Appelez-nous	-
19	318067523		Pan-burner, Large, (1)		Appelez-nous	-
20	318120001		Grate, (4)		Appelez-nous	-
21	318050500		Trim Ring, Gray, (3)		Appelez-nous	-
21	318050600		Trim Ring, Large, Gray, (1)		Appelez-nous	-
22	316011016		Cap-burner, Gloss Gray, Small, (3)		Appelez-nous	-
22	316011017		Cap-burner, Gloss Gray, Large, (1)		Appelez-nous	-
43	5303307933		Bushing, Top Burner Knob (not Illustrated)		Appelez-nous	-
43	318016507		Knob-top Valve, White, (4)		Appelez-nous	-
45	5304513507		Bushing - Snap   (Replaces: 3201437)				$ 9.10
46	318077100		Burner Box		Appelez-nous	-
47	5303303991		Cord-electric Power				$ 96.50
*79080	318090400		Bracket		Appelez-nous	-
*79081	318125000		Deflector		Appelez-nous	-
*79082	318143400		Deflector		Appelez-nous	-
*79083	318143401		Deflector		Appelez-nous	-
*79084	5303311306		Screw, 8-18 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
