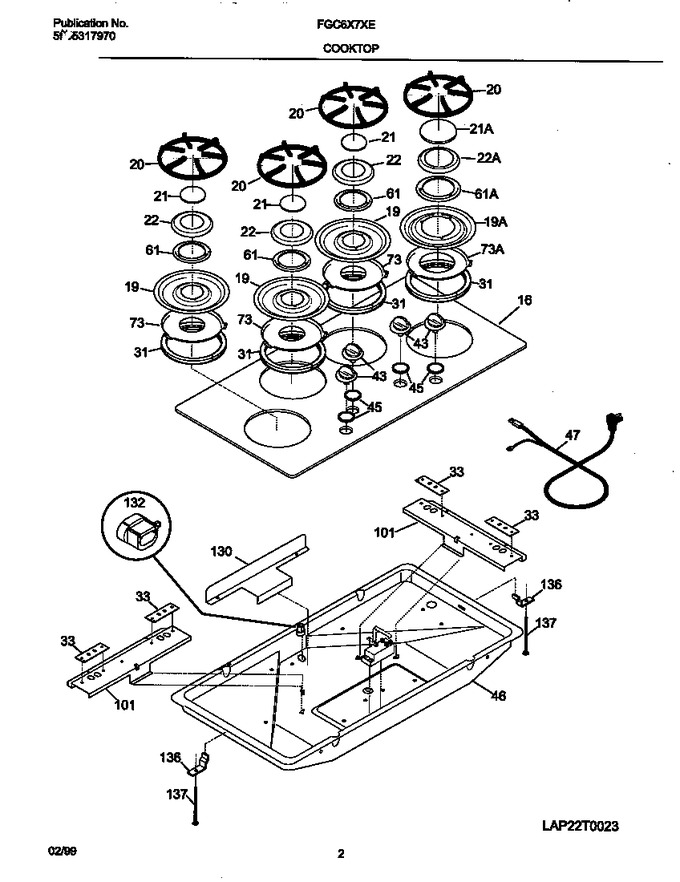

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318079400		Maintop		Appelez-nous	-
19	318065723		Pan-burner,grey		Appelez-nous	-
19	318067503		Pan-burner,grey		Appelez-nous	-
20	318120004		Grate-grey		Appelez-nous	-
21	316098509		Cap-burner Large,grey		Appelez-nous	-
21	316098508		Cap-burner Small,grey		Appelez-nous	-
22	318050500		Trim Ring,grey		Appelez-nous	-
22	318050600		Trim Ring,grey		Appelez-nous	-
31	318052900		Gasket-pan		Appelez-nous	-
33	318072000		Bracket-burner Mtg		Appelez-nous	-
43	318016507		Knob-top Valve White		Appelez-nous	-
45	5303307933		Bushing		Appelez-nous	-
46	318077100		Burner Box		Appelez-nous	-
61	318083901		Trim Ring		Appelez-nous	-
61	318083900		Trim Ring		Appelez-nous	-
73	318143400		Shield-burner,small		Appelez-nous	-
73	318143401		Shield-burner,large		Appelez-nous	-
101	318090400		Bracket-burner		Appelez-nous	-
130	318125001		Shield,burner Box		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
*46000	5303311306		Screw, 8-18 X 3/8		Appelez-nous	-
*46001	5303300265		Screw, 8-18 X 1/2				$ 15.17
*46002	5304403558		Screw, 10-16 X 1/4		Appelez-nous	-
*46003	318052106		Harness Wiring		Appelez-nous	-
