01 - Cover

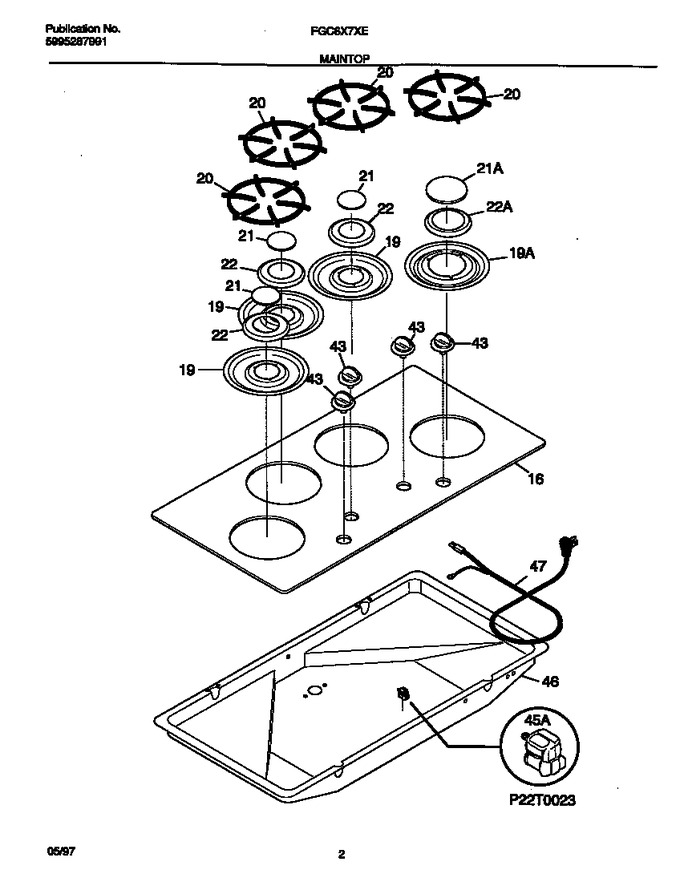

02 - Maintop
03 - Burner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 318079402 | Main Top, Almond |
|
- | |||||
| 19 | 318067522 | Pan-burner, Almond, Large |
|
- | |||||
| 19 | 318052900 | Gasket-pan, (4) (not Illustrated) |
|
- | |||||
| 19 | 318067502 | Pan-burner, Almond, (3), Small |
|
- | |||||
| 20 | 318120002 | Grate, (4) |
|
- | |||||
| 21 | 318050501 | Trim Ring, Almond, (3) |
|
- | |||||
| 21 | 318050601 | Trim Ring, Almond, Large |
|
- | |||||
| 22 | 318142010 | Cap-burner, Moonrock, Small, (3) |
|
- | |||||
| 22 | 318142000 | Cap-burner, Moonrock, Large |
|
- | |||||
| 43 | 318016508 | Knob-top Valve, Almond, (4) |
|
- | |||||
| 46 | 318077100 | Burner Box |
|
- | |||||
| 47 | 5303303991 | Cord-electric Power |
|
$ 96.50 | |||||
| *48360 | 318125000 | Deflector |
|
- | |||||
| *48361 | 318143400 | Deflector |
|
- | |||||
| *48362 | 318143401 | Deflector |
|
- | |||||
| *48363 | 5303311306 | Screw, 8-18 X 3/8 |
|
- | |||||
| 45A | 5304513507 | Bushing - Snap (Replaces: 3201437) |
|
$ 9.10 | |||||
| 45B | 5303307933 | Bushing, Top Burner Knob (not Illustrated) |
|
- |
