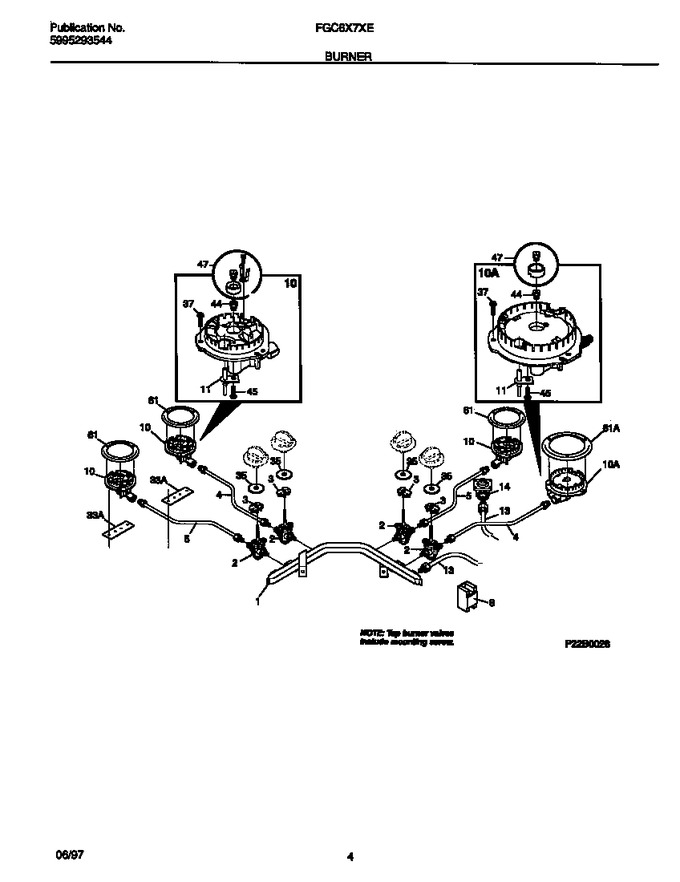

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316032002		Switch-ignitor, (4)				$ 63.46
4	318054604		Tube-burner		Appelez-nous	-
5	318054605		Tube-burner		Appelez-nous	-
10	318055100		Burner Assy-top, Sealed, 11000 Btu, (1), Includes, 11, 3		Appelez-nous	-
10	318055001		Burner Assy-top, Sealed, 9000 Btu, (3), Includes, 11, 37		Appelez-nous	-
11	316011200		Ignitor,top Burner ,(4) ,w/mtg Bracket			Immediately	$ 38.68
13	318054504		Connector, Manifold Pipe		Appelez-nous	-
14	5308007974		Regulator-pressure				$ 309.02
24	318054000		Elbow Fitting		Appelez-nous	-
35	5303307978		Bushing-insulation		Appelez-nous	-
37	5303320671		Screw, Burner Mtg, Metric, (12)				$ 1.91
45	316011100		Screw-ignitor Mtg, Self-tapping, M3 X 5.8, (4)				$ 3.41
47	5303319611		Lp Conversion Kit				$ 59.35
61	318083900		Trim Ring, Small, Chrome, (3)		Appelez-nous	-
61	318083901		Trim Ring, Large, Chrome, (1)		Appelez-nous	-
*79085	318065000		Restrictor		Appelez-nous	-
*79086	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
1A	318077910		Manifold Pipe		Appelez-nous	-
1B	08011955		Screw, Pan Head, 10-24 X 3/8, Square Drive (not Illustrated)			Immediately	$ 9.36
2A	5303935042		Valve-top Burner, Small, 2-position, (3)				$ 175.25
2B	316036801		Valve-top Burner, Large, (1), W/screw		Appelez-nous	-
2C	316048200		Screw-top Valve Mtg, Hex Washer Head, 1/4-20 X 0.31, (4), W/gasket (not Illustrated)		Appelez-nous	-
33A	318072000		Bracket-burner Mtg, (4)		Appelez-nous	-
33B	5303311306		Screw, 8-18 X 3/8 (not Illustrated)		Appelez-nous	-
44A	318088700		Orifice-top Burner, 9000 Btu, (3)		Appelez-nous	-
44B	318088702		Orifice-top Burner, 11000 Btu, (1), Large		Appelez-nous	-
8A	5304505695		Spark Module   (Replaces: 5303280394)			Immediately	$ 68.16
8B	318024200		Bracket, Spark Module (not Illustrated)		Appelez-nous	-
